2015 Aston Martin Rapide S Super Saloon

Welcome to the new world of Aston Martin…

1

The Rapide S is the fierce four-door head rush from Aston Martin. If you prefer your performance packaged as a super saloon…this is your car. The Rapide S captures the elite refinement of an ultra-luxury sedan, the breathtaking V12 power of a high-performance sports car…and the ability to move with the tremendous verve and élan of an Aston Martin. Four-door saloons can flex their muscles too – the Rapide S is proof. Where ever the journey takes you…a serendipitous adventure along the way is inevitable –

2

Anatomy of power –

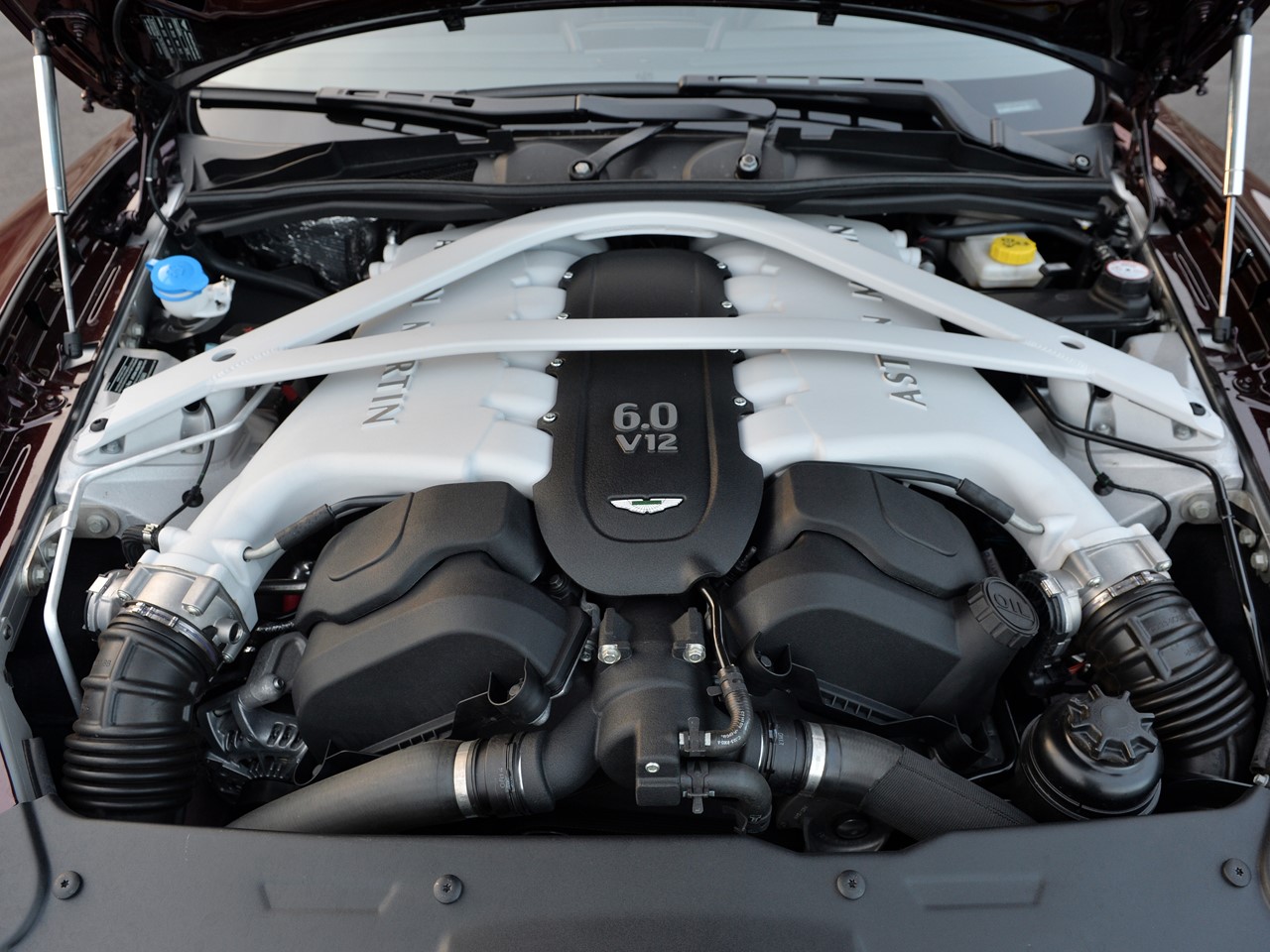

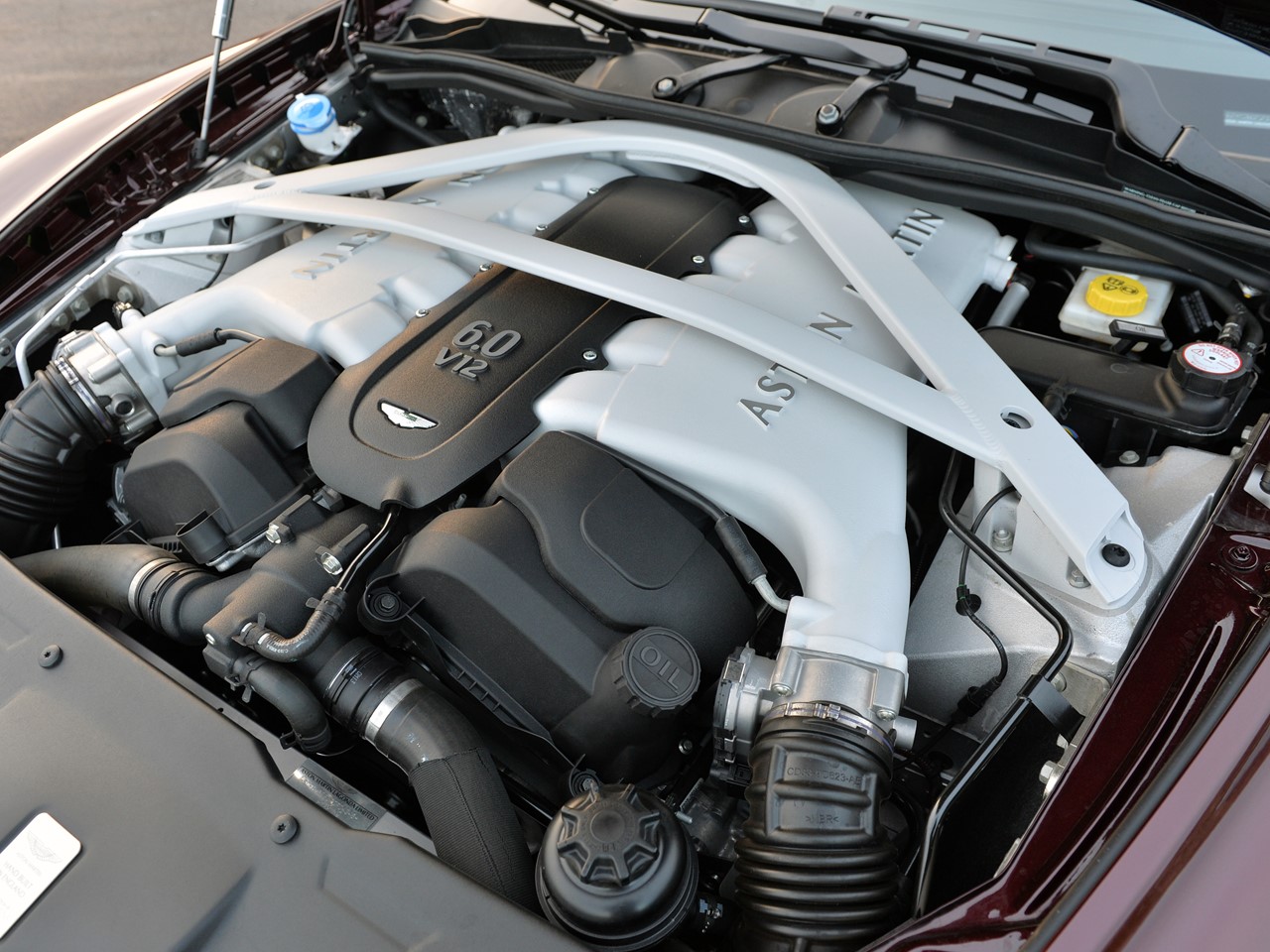

Who says there is no such thing as a four-door muscle car? To flaunt the point, a refined and ferocious aluminium alloy 6.0 litre 48-valve AM29 V12 moves this car with aplomb…while minding its manners of course – let’s go fast with class…its factory rated top speed is a mind altering 203 mph. The engine is mated to a ZF 6HP26 8-speed automatic with Touchtronic III shift by wire control system for those who prefer to do it themselves. The gearbox is mid-rear mounted with an alloy torque tube and carbon fibre prop shaft. The AM29 V12 engine is front mid-mounted for a near perfect weight distribution. This is the most advanced V12 engine in the history of the brand.

3

The engine and transmission are coordinated for efficiency. The Bosch Engine Management system digitally enhances performance by monitoring and analyzing pertinent data. This sophisticated performance management technology brings a new level of engineering excellence to the Rapide S.

This is one of the fastest four-door saloons in the world. The potent 6.0 litre V12 produces 552 hp @ 6,650 rpm with a respectable 630 Nm of peak torque @ 5,500 rpm. Longitudinal acceleration is rated as 0-60 mph in 4.2 seconds, 0-100 mph in 9.9 seconds, 0-120 mph in 14.4 seconds, 0-140 mph in 19.8 seconds, and 0-180 mph in 50.7 seconds. It does the ¼ mile @ 112 mph in just 12.7 seconds.

6

11

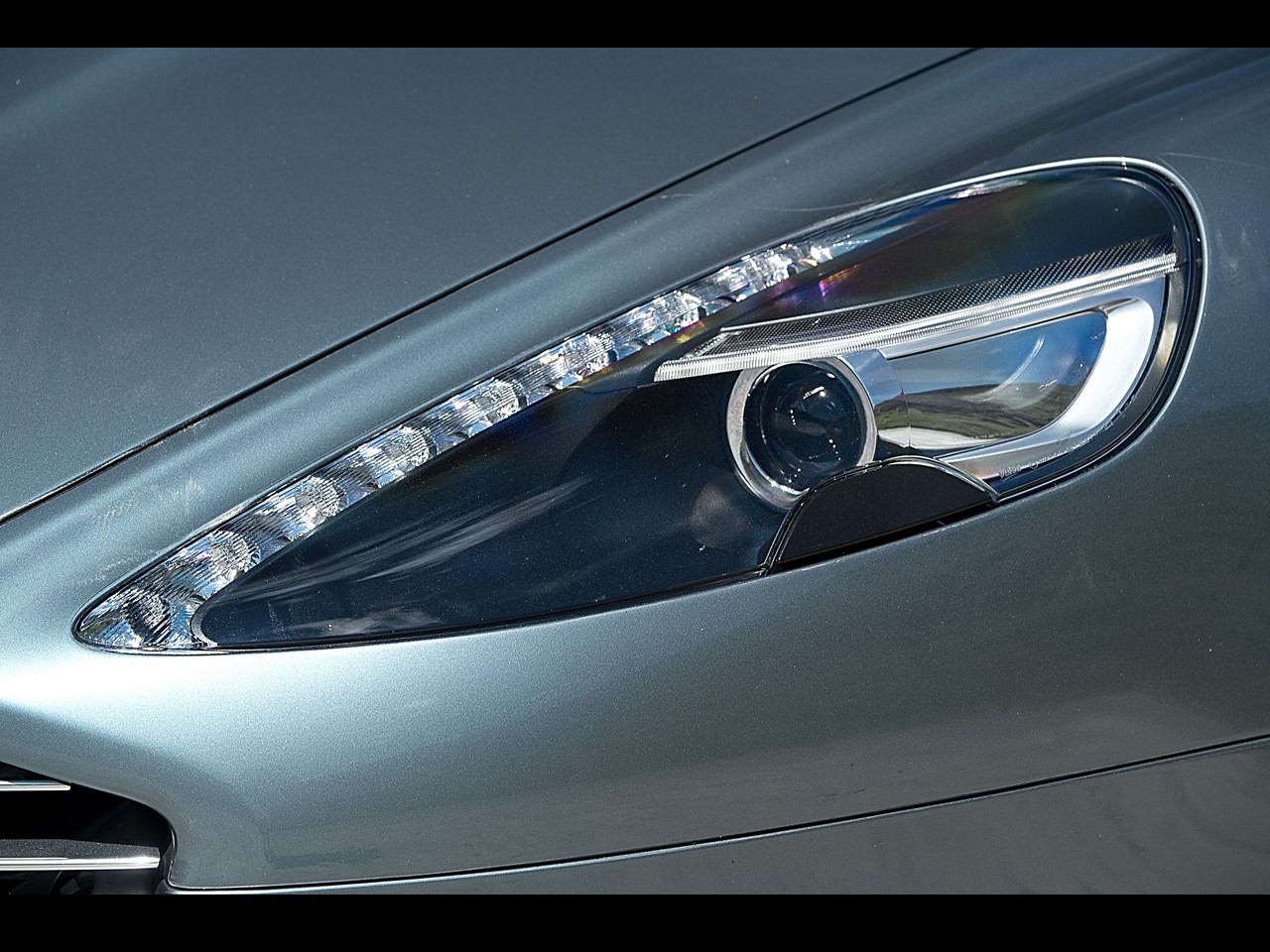

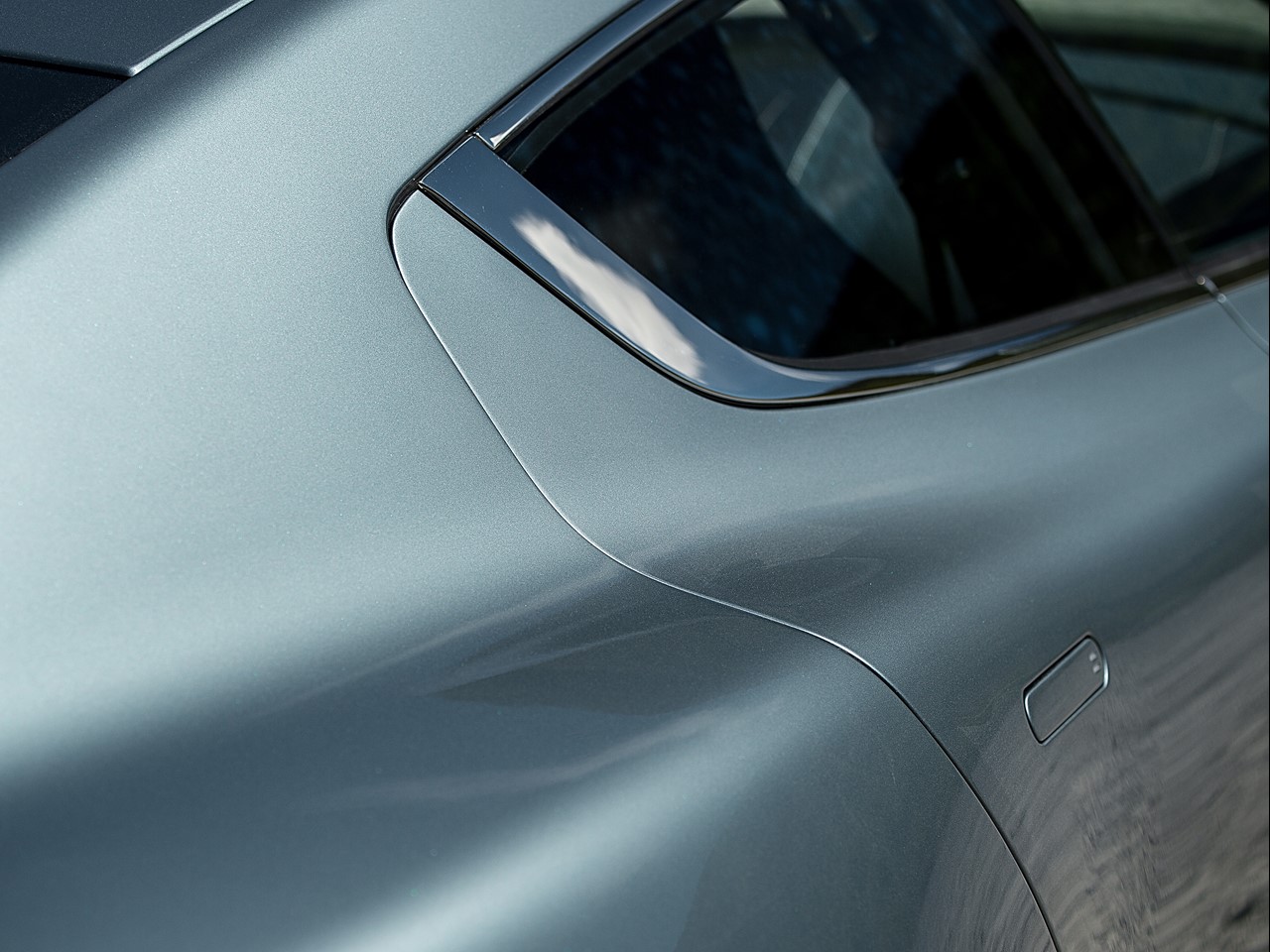

An Aston Martin Rapide S is an integrated machine, driving is believing. All of the attributes of a premium automobile coordinate themselves anonymously. Its extruded aluminium and carbon fibre bonded VH body structure is fitted with aluminium and carbon fibre body panels with cast-magnesium door structures. It has single Bi-Xenon headlamps with integrated LED side lights/directional indicators. The exposed carbon fibre splitter, diffuser, and sill blade add a touch of drama with the spotlight on the LED light blade taillamps. Traditional Aston Martin beauty is apparent in the Rapide S.

4

Structural integrity –

“VH” is an engineering methodology and not just a platform. The “V” represents shared body construction principles. The “H” represents horizontal systems shared such as engines, suspension components etc. These functional networks can be modified easier because of the component nature of their construction. The bonded aluminium chassis provides the basis for other cars shared from the single common central core.

Its VH architecture is 3 percent stiffer. It absorbs and cancels road noise and vibration before reaching the passenger cell. Its lightweight aluminium structure is bonded with an industrial strength epoxy resin. Through technical evolution, the Rapide S benefits from a unique sports car architecture of phenomenal stability and rigidity.

13

12

The Rapide S is equipped with Gen4 Adaptive Damping. This allows the driver to select from “Normal,” “Sport,” and “Track.” At the touch of a button it goes from a luxurious super saloon to an assertive sports car with immediate response. The Rapide S has a near perfect 45:52 weight distribution. Its precise handling and efficient aerodynamics are sure to satisfy the most discerning drivers.

16

17

18

19

Its aggressive independent 4-wheel suspension uses double wishbones, coil springs, anti-roll bar, and monotube 3-stage adaptive dampers fitted to the front and rear. The front suspension has anti-dive geometry, while the rear has anti-squat and anti-lift geometry to maintain stability and poise under any driving situation. Speed-sensitive Servotronic power assisted rack and pinion steering is precise and allows the driver to “feel” the road. The power 4-wheel disc brake system is equipped with ABS and Hydraulic Brake Assist.

10

Computer assisted Dynamic Stability Control has been recalibrated. Normal and Track modes further refine the ride to monitor and detect irregular wheel spin, under or over-steer, it then compensates the deficiency with engine torque reduction or braking technology. When in Track mode, the ABS system remains passive until required which allows the experienced driver to maintain a greater level of handling and control.

Digital Technology such as Electronic Brakeforce Distribution, Dynamic Stability Control, Traction Control, Positive Torque Control, and Electronic Parking Brake, all work in harmony behind the scene to maintain optimum overall performance at any speed. The Rapide S is a sports car with two extra doors –

14

15

22

Executive-style elegance –

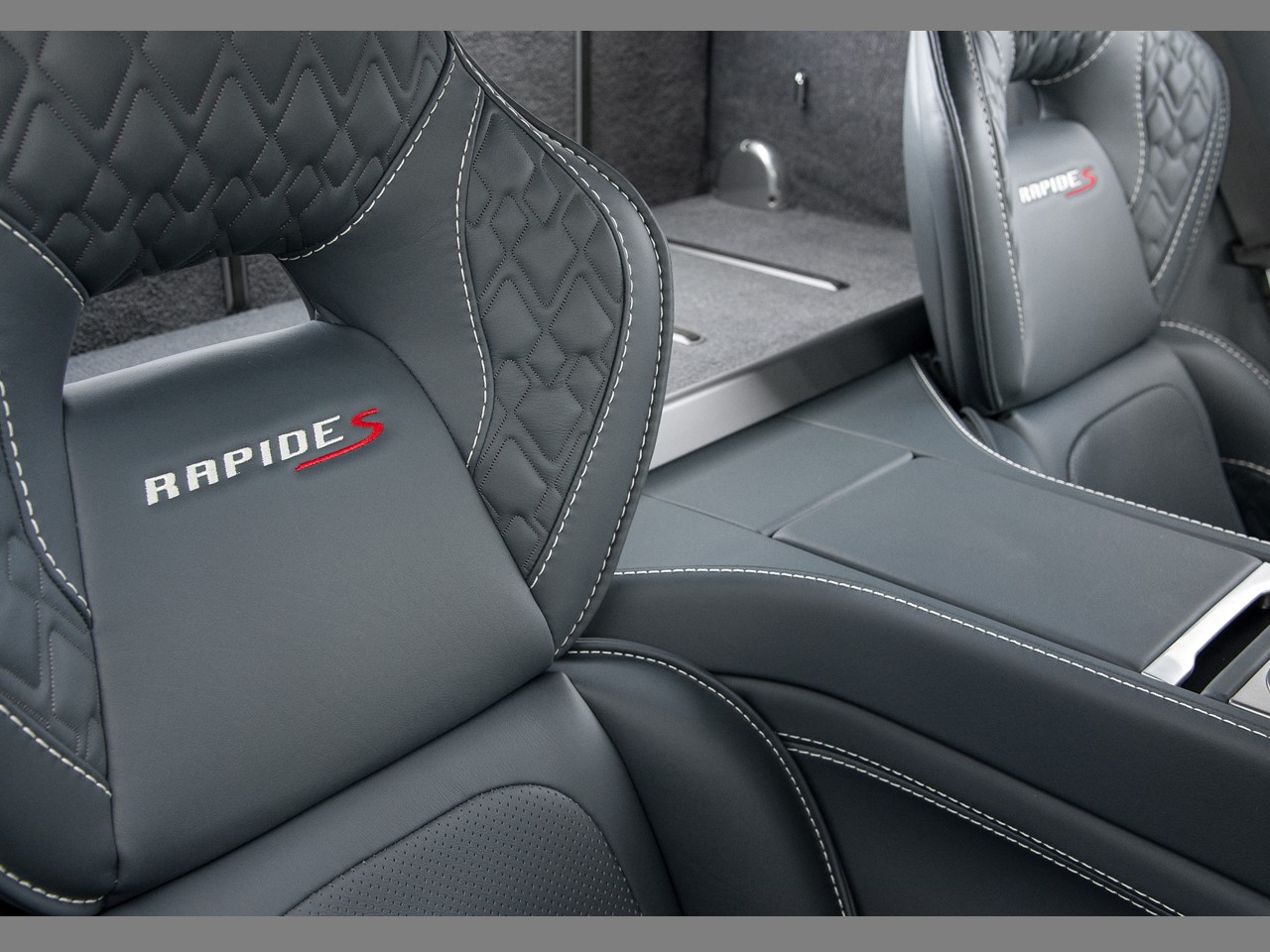

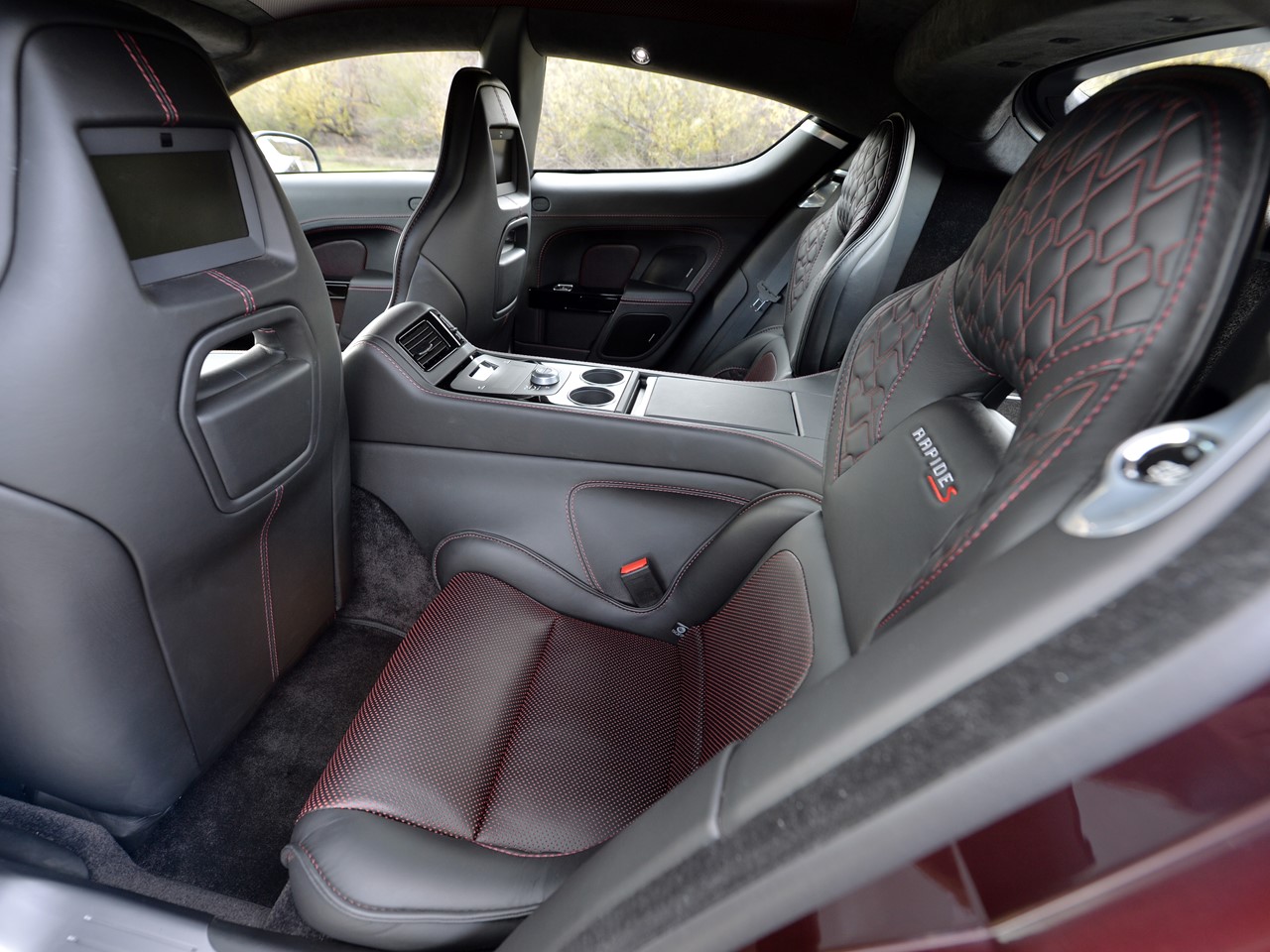

Inside the British hand-crafted super saloon are four of the most desirable seats in the industry. Super soft, full grain Luxmill hand-stitched leather by Bridge of Weir graciously upholsters the high back lounge seats, door panels, and dash. Two different wood finishes, Piano Black and Ice Mocha are designed to complement the leather and carbon fibre detailing for a rare luxury experience. For an even more enticing Rapide S, allow “Q” by Aston Martin to assist in creating a totally bespoke vehicle as distinctive and individual as your finger print.

23

21

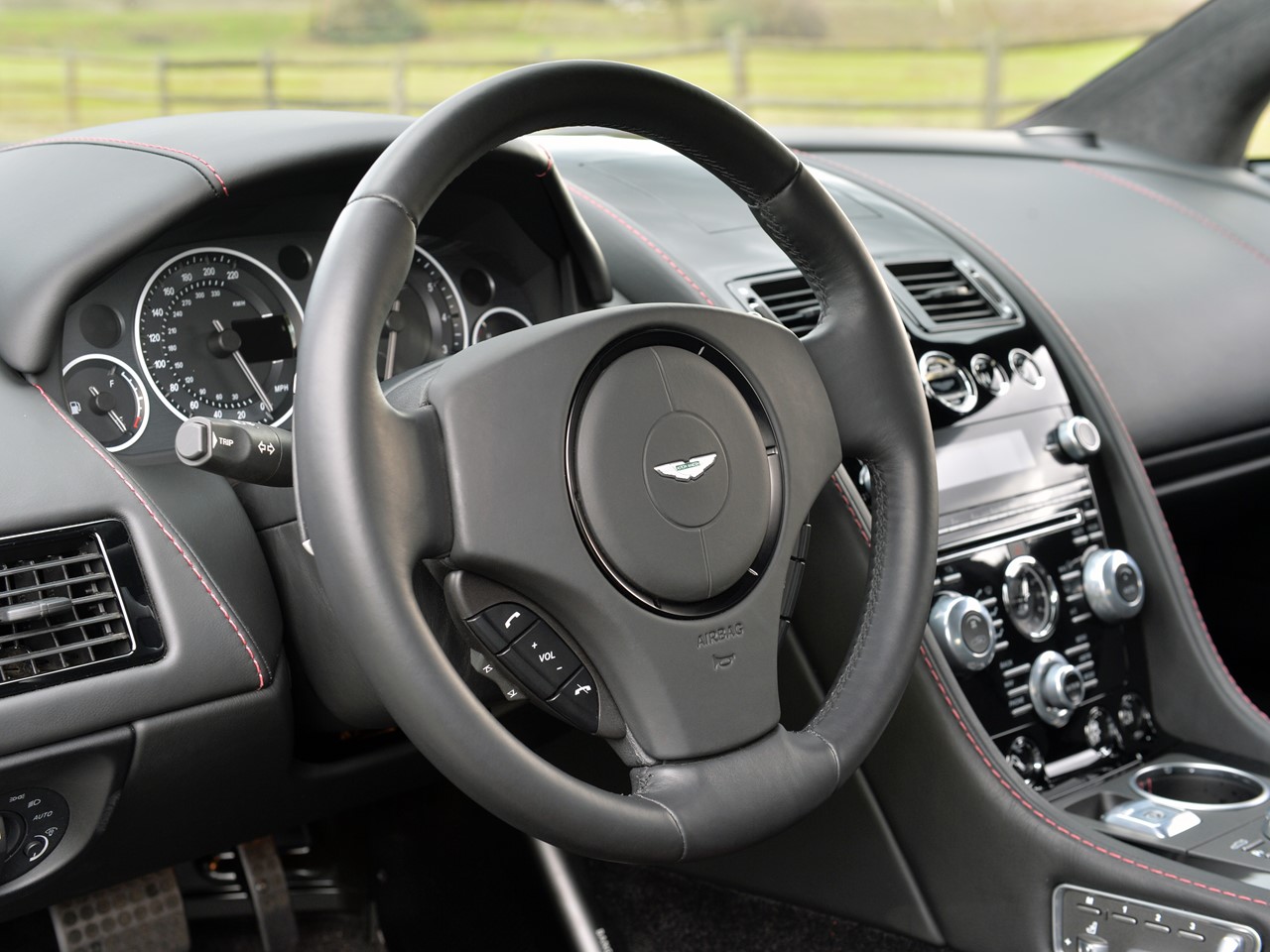

Rapide S is unique among luxury automobiles. Elegant glass dash switches and walnut fascia trim are exclusive Aston Martin virtues. Power operated front seats have a memory function that include the outside rear view mirrors. Heated front and rear seats are standard. The Rapide S is a comprehensively equipped luxury saloon. With its extensive list of power features…it would be easier to tell you what is not. When traveling…it’s the journey that is actually more important than the destination…right? Aston Martin makes the journey most rewarding –

Switch on the 1,000 watt Bang & Olufsen Beosound audio system…no matter which seat one occupies, this sophisticated sound system delivers perfect pitch. The sound of the AM29 V12 engine is balanced precisely with the audio system. Even the stainless-steel exhaust system is equipped with active bypass valves to deliver a “tuned” exhaust sound. Rear seat entertainment systems are available to further distinguish your Rapide S.

24

25

5

20

7

There is just something intriguing about a four-door Aston Martin. The Rapide S has become a contemporary work of automotive science. Powered by the refined AM29 V12 engine, this luxurious saloon becomes the unexpected sports car. Technology, form, and function, follow evolution with every Aston Martin.

The Rapide S is an elegantly styled and boldly distinctive result of such. Its trim, athletic aluminium and carbon fibre architecture conceals the intricate VH body structure refined to be 3 percent stiffer than the previous model. The Rapide S is a unique four-door luxury sports saloon with world-class dynamics and the exquisite beauty of an Aston Martin –

8

Photos courtesy Aston Martin Media Club

27

26

Can you see the Aston Martin sports car in its silhouette?

28

30

29

2015 Aston Martin Rapide S Super Saloon is NotoriousLuxury…

Taraf 2

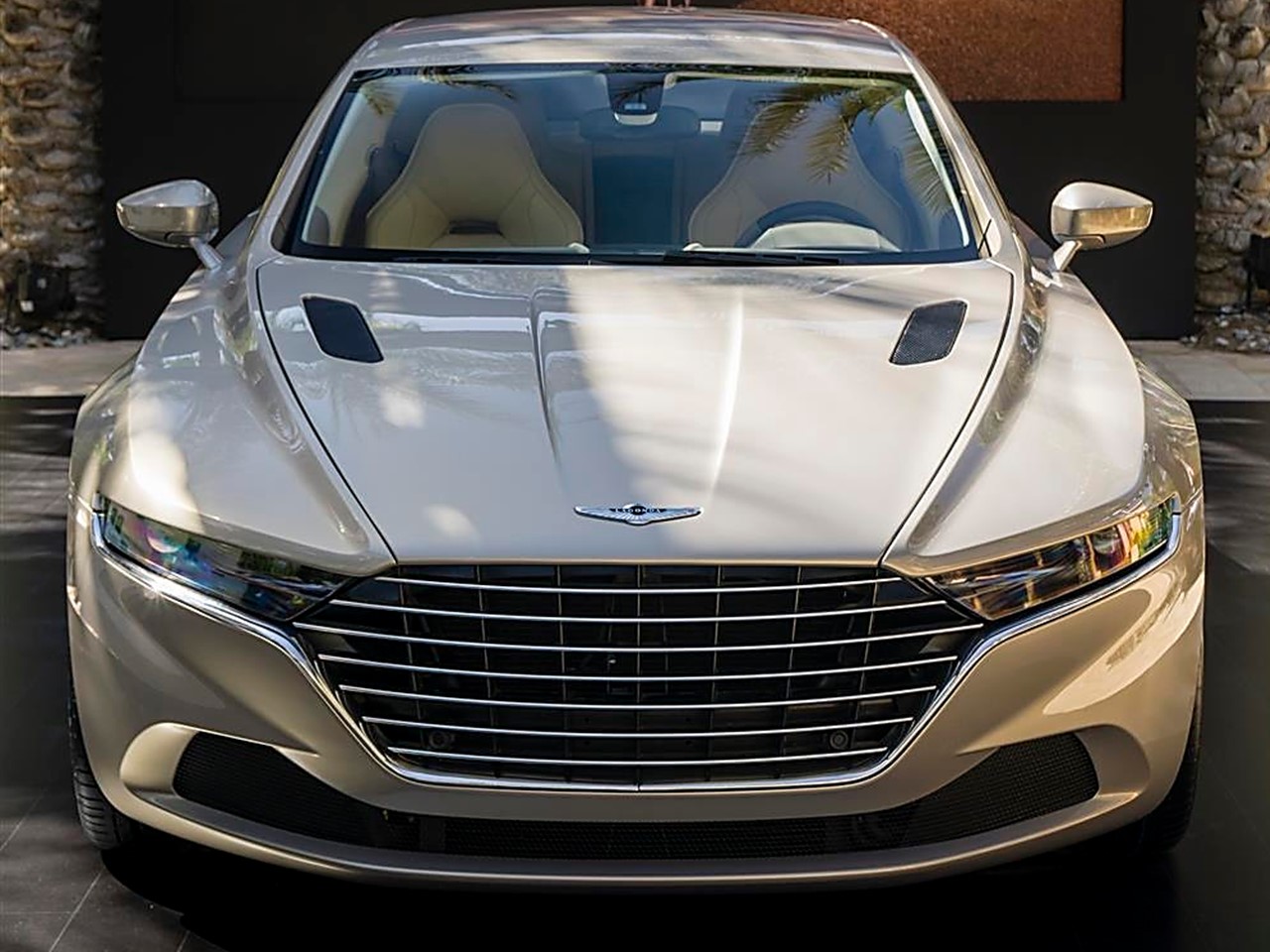

Aston Martin Lagonda Taraf 4-door super saloon

Taraf 3

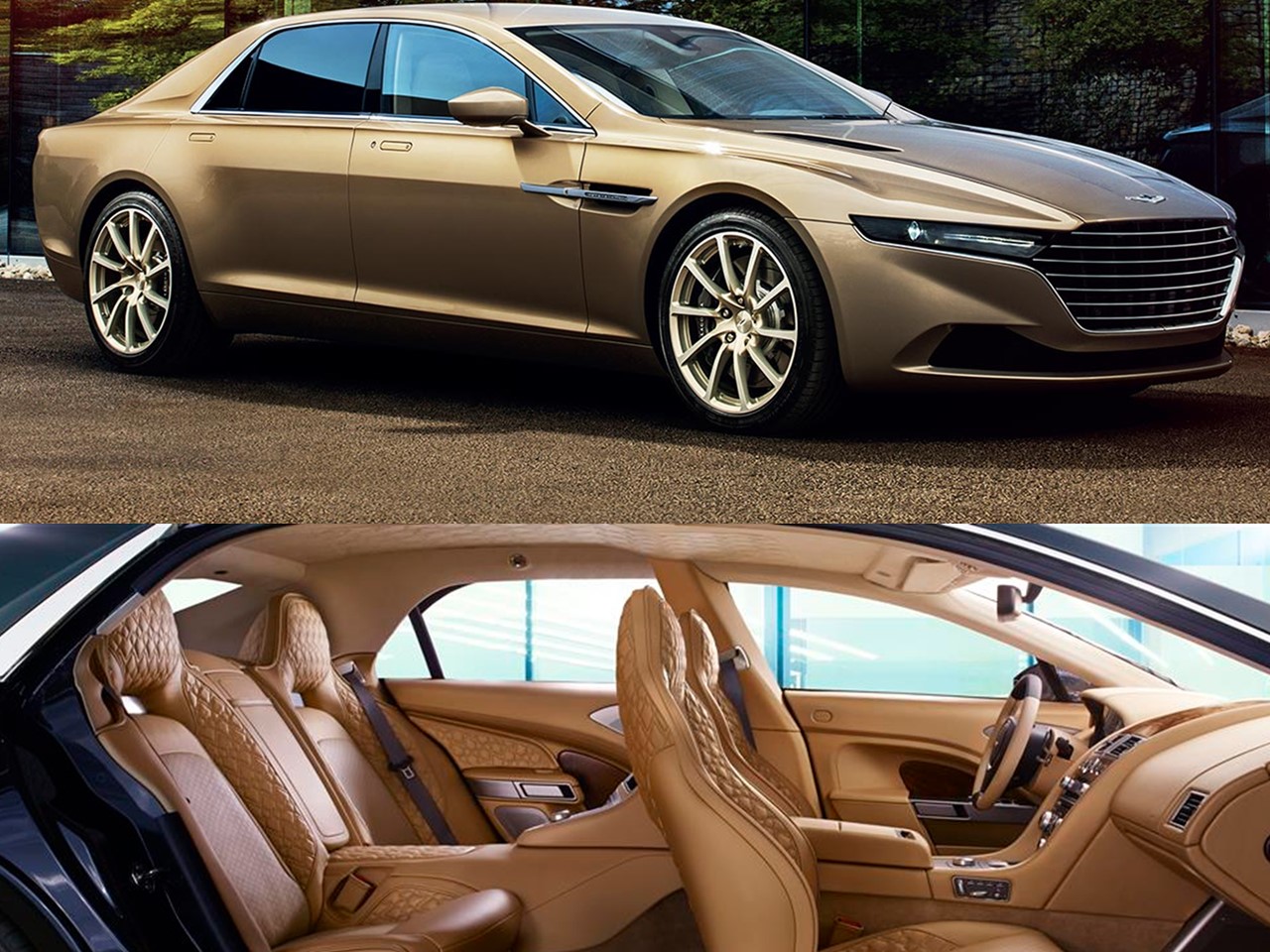

Its production schedule is limited to 200 vehicles world-wide
