1965 Cadillac Coupe deVille

…the DeVille legend continues

1

…in the continuing saga of “As the Standard of the World Turns”

2

3

Cadillac was “Standard of the World” in motoring pleasure and owner loyalty. “So new…so right…so obviously Cadillac.” This editorial is dedicated to those who regard their motorcars as prized possessions. Once one has been in the driver’s seat of a new Cadillac…it is difficult to become content with any other car.

The integrity of Cadillac styling, engineering prowess, and production superlatives has earned Cadillac a unique and dual distinction. The Coupe deVille for 1965 was an all-new design. Its crisp contemporary lines were like no other Cadillac ever built. Style code # 65-683 68357-J Coupe deVille had a base price of $5,419.00 and 43,345 were built for the 1965 model year.

Here is another classic DeVille encore performance…in the continuing saga of “As the Standard of the World Turns.”

4



8

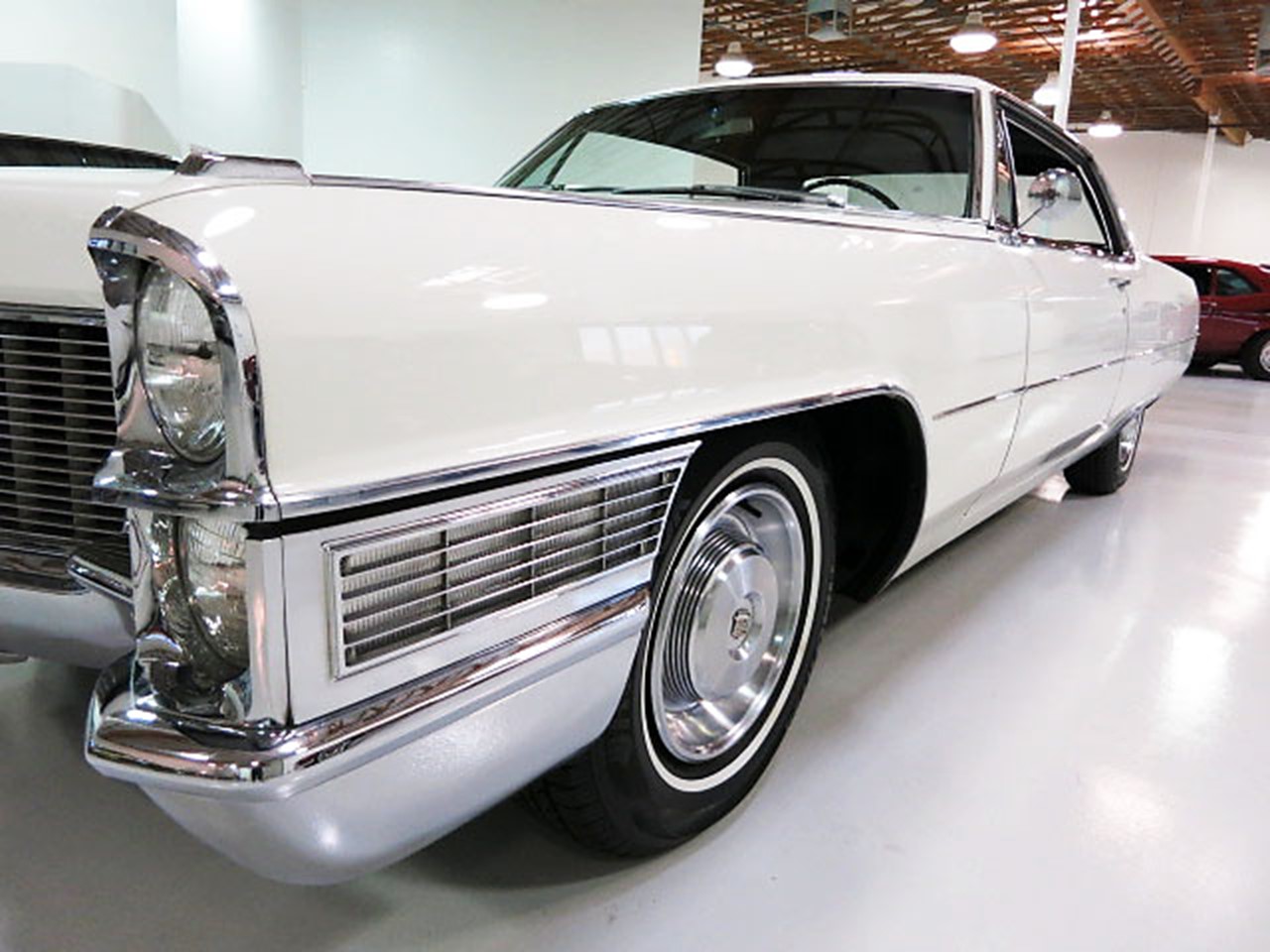

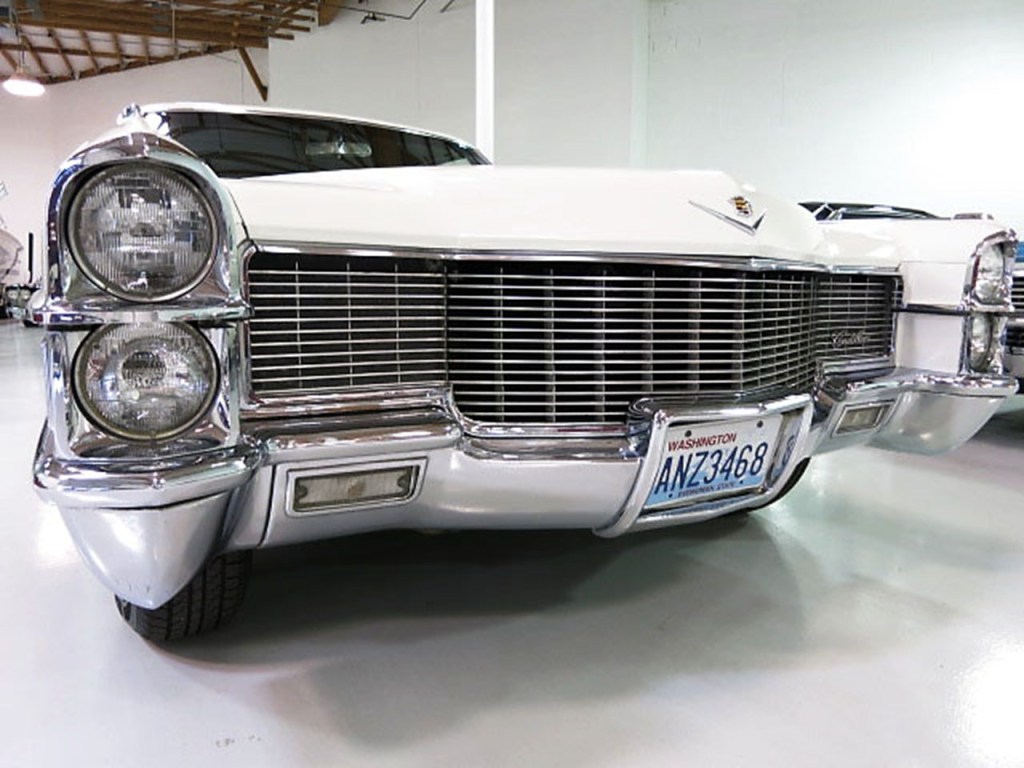

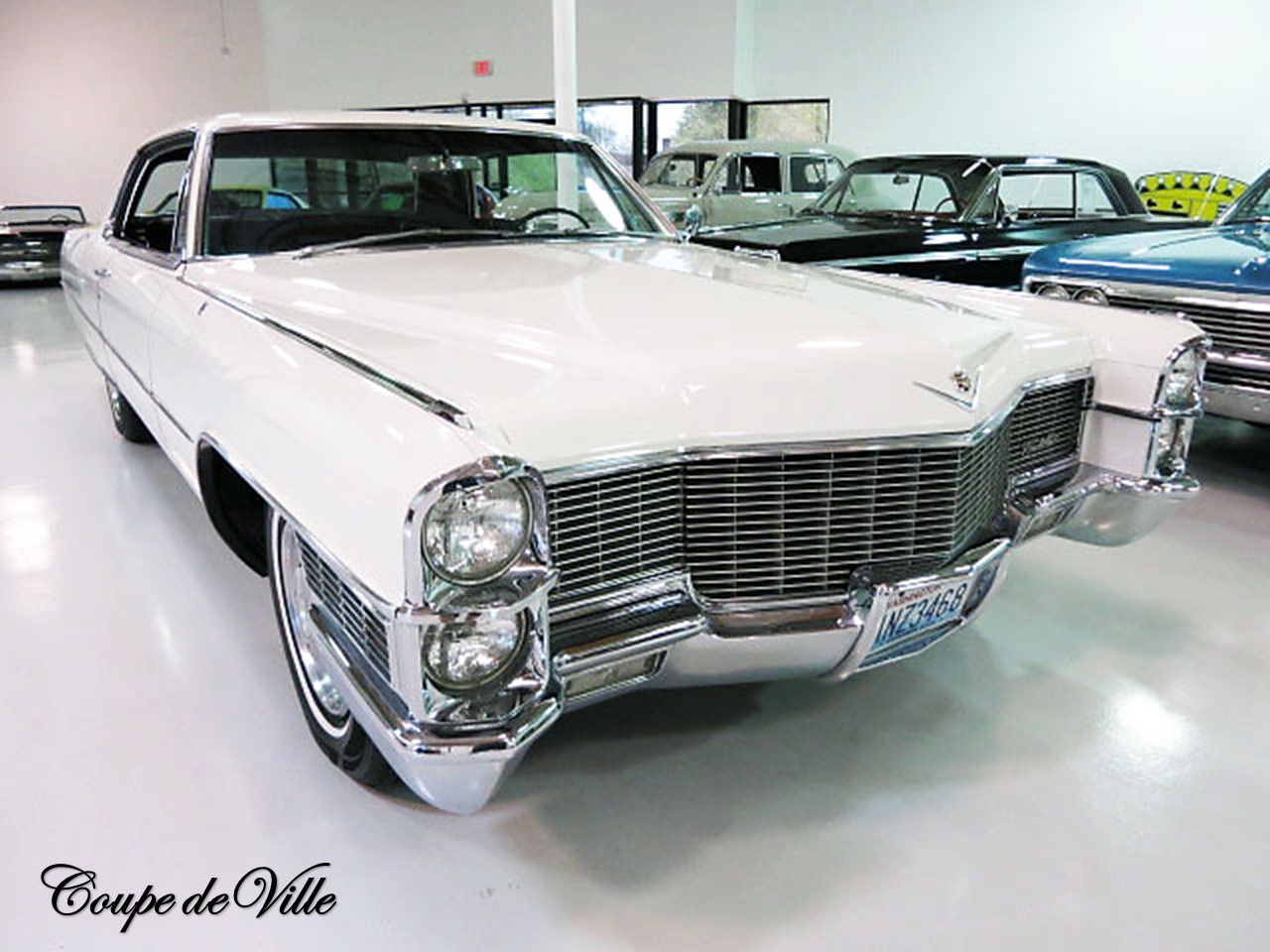

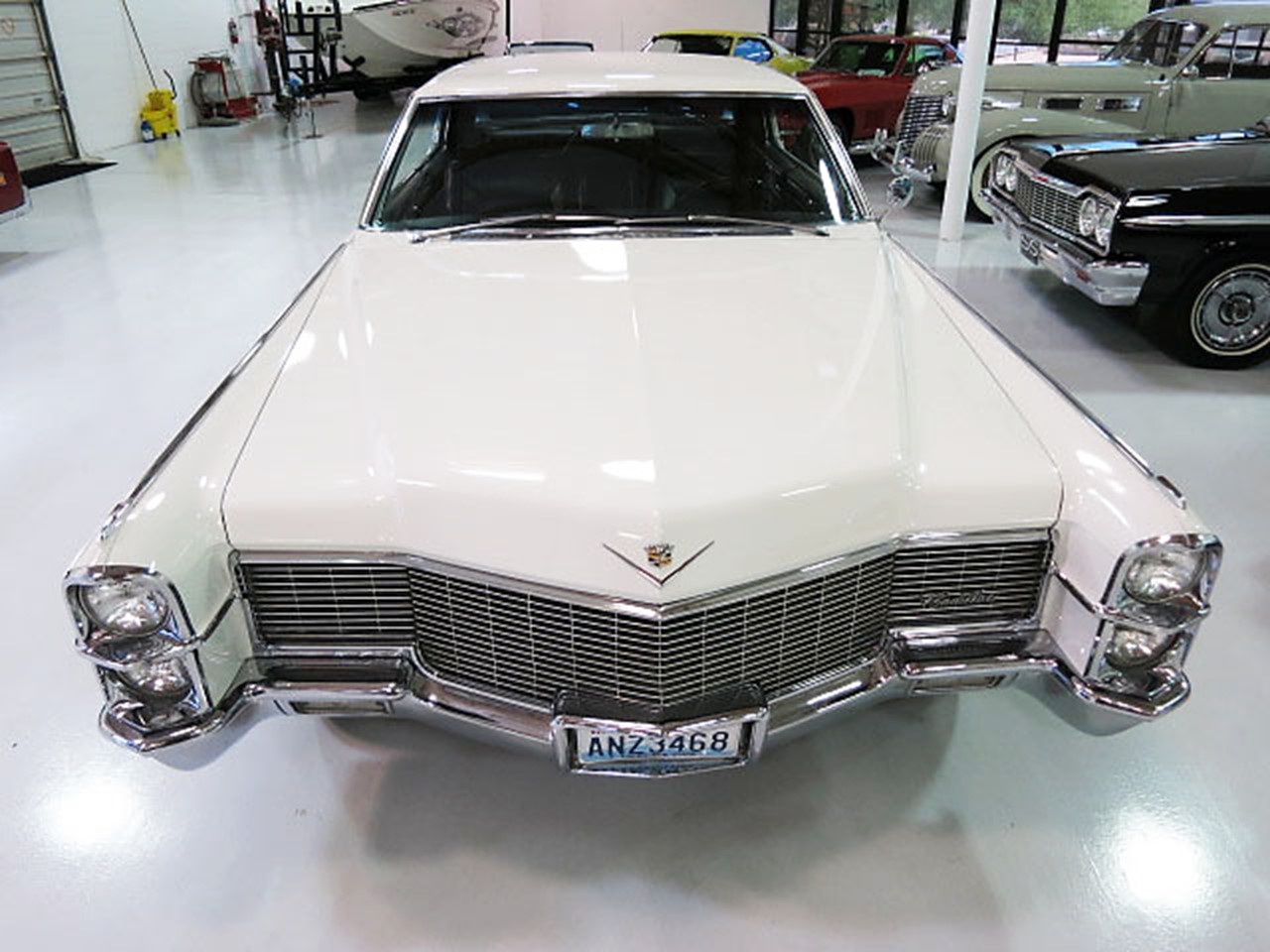

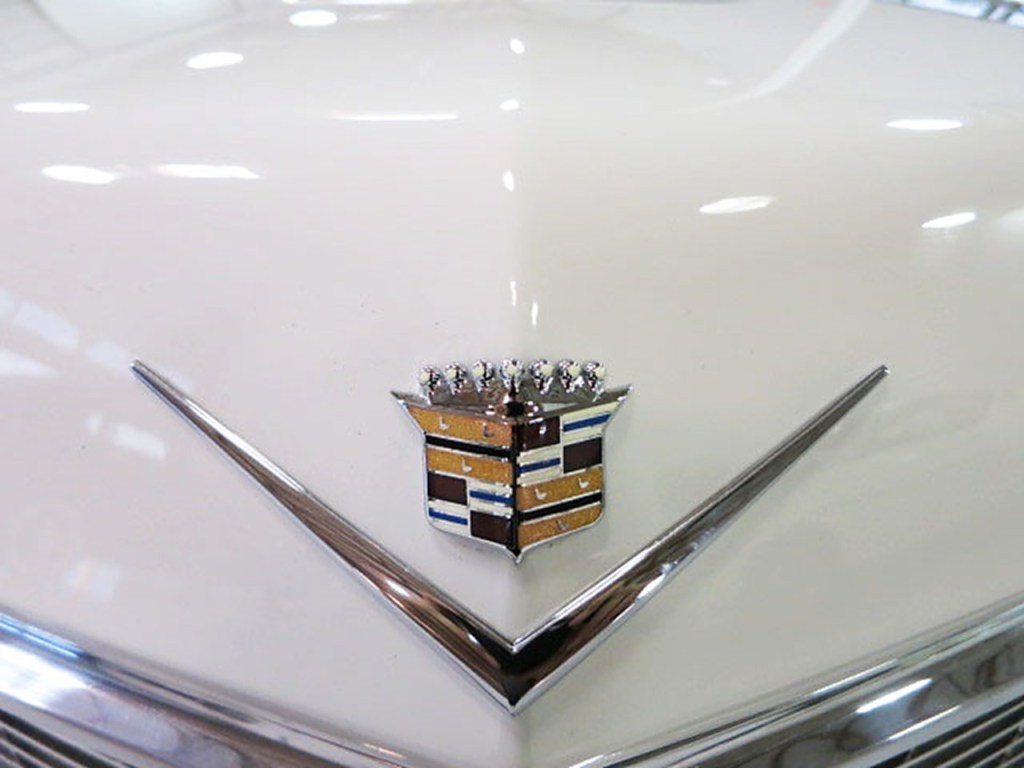

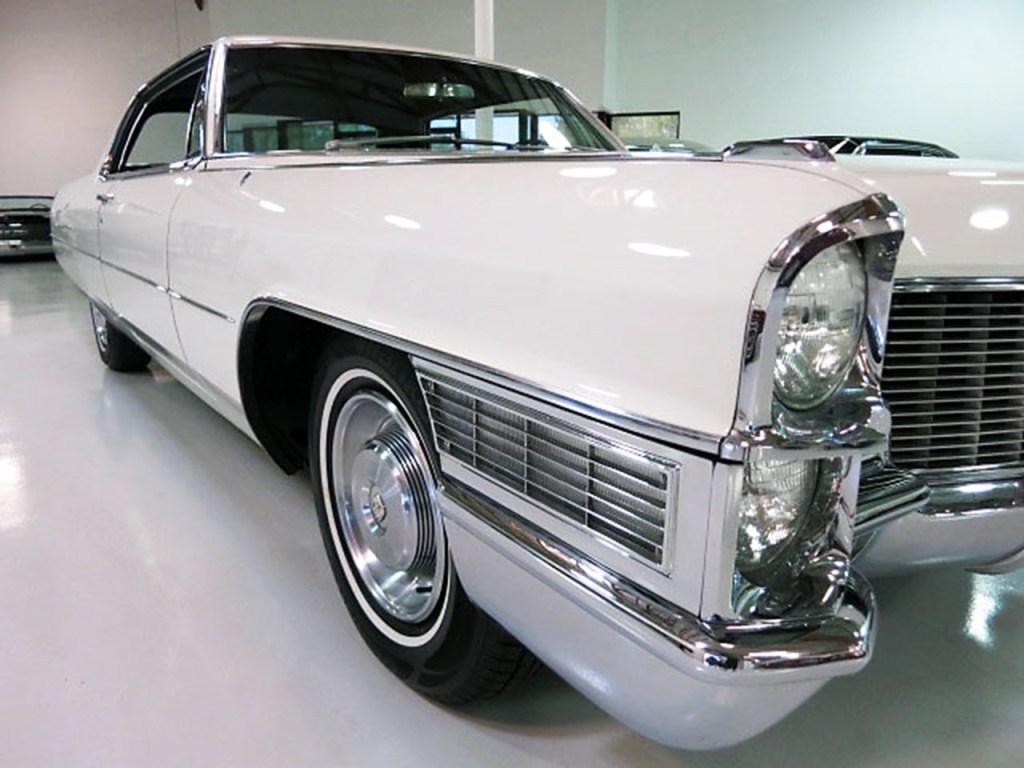

The 1965 Coupe deVille was America’s favorite luxury car…the other was the Sedan deVille. New exterior styling showcased a lower silhouette. Its new front end ensemble included a wider grille and hood, dual vertical stacked headlamp placement, larger cornering lamps, and a massive new bumper with integral parking lamps.

7

5

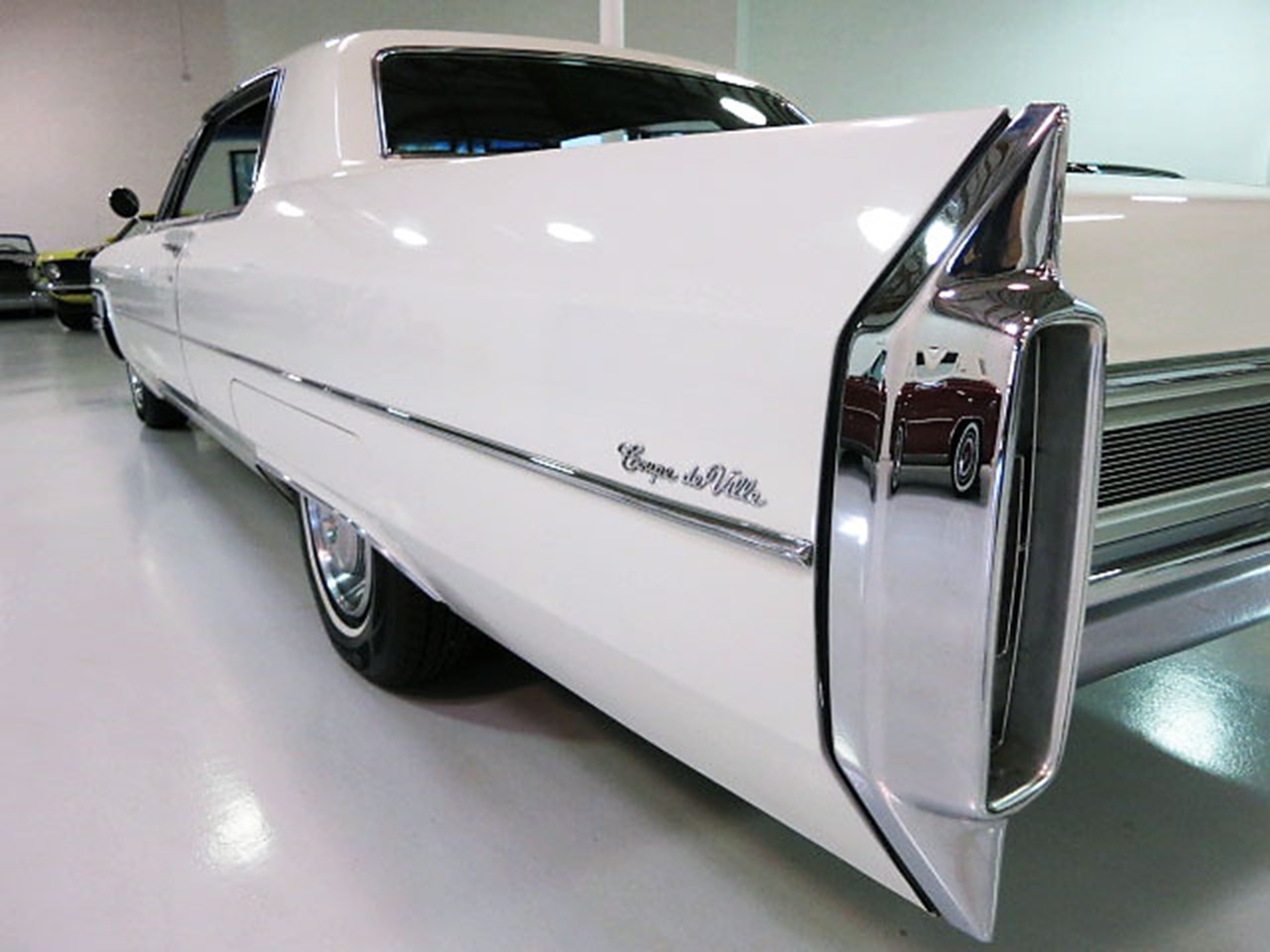

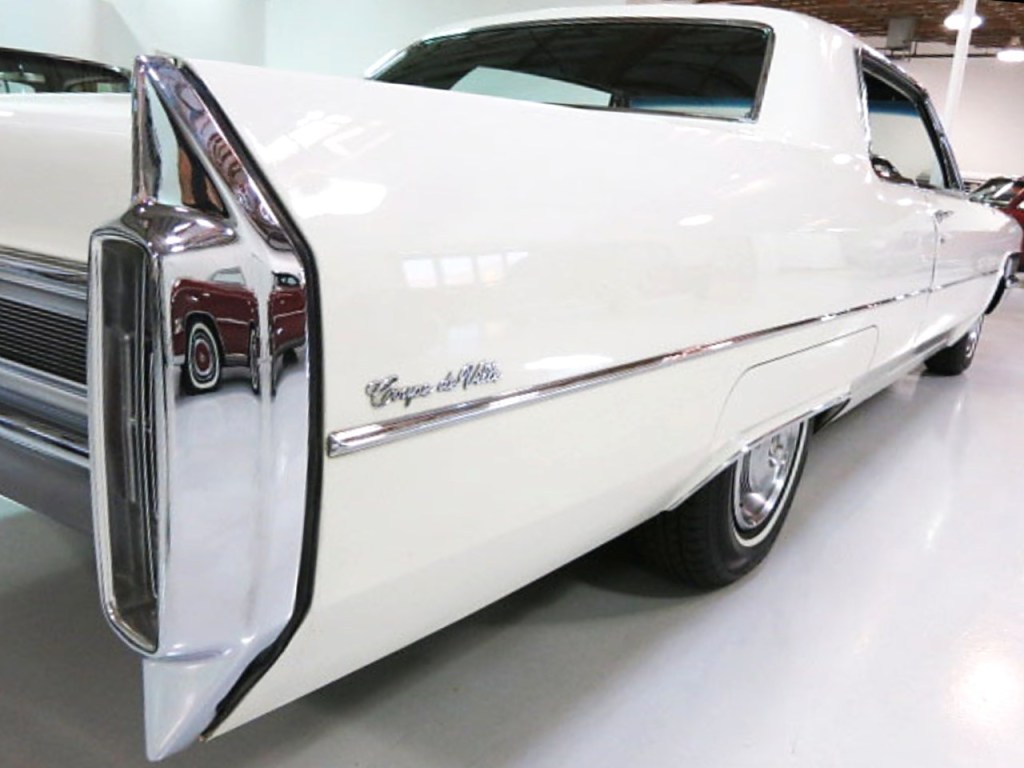

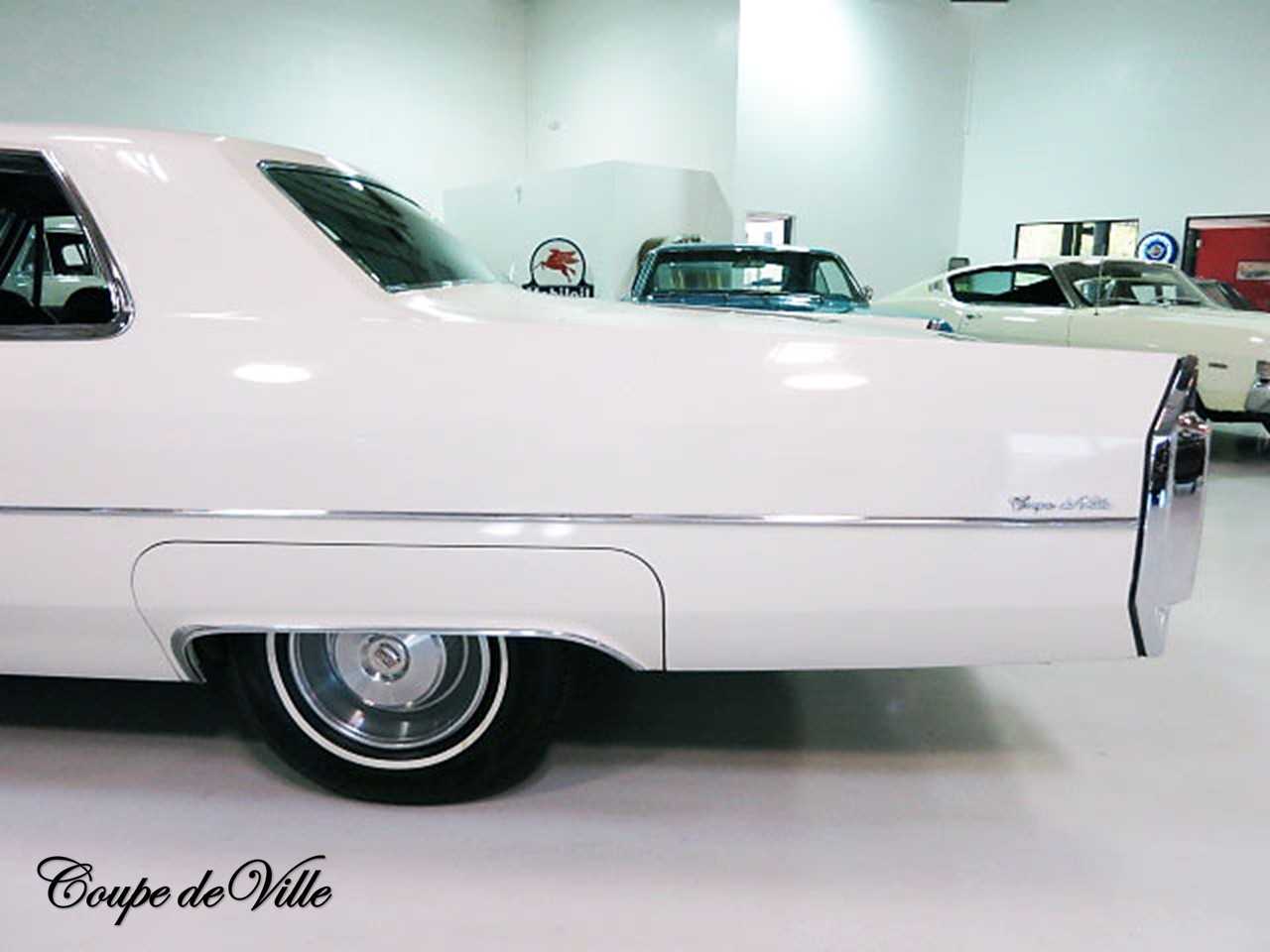

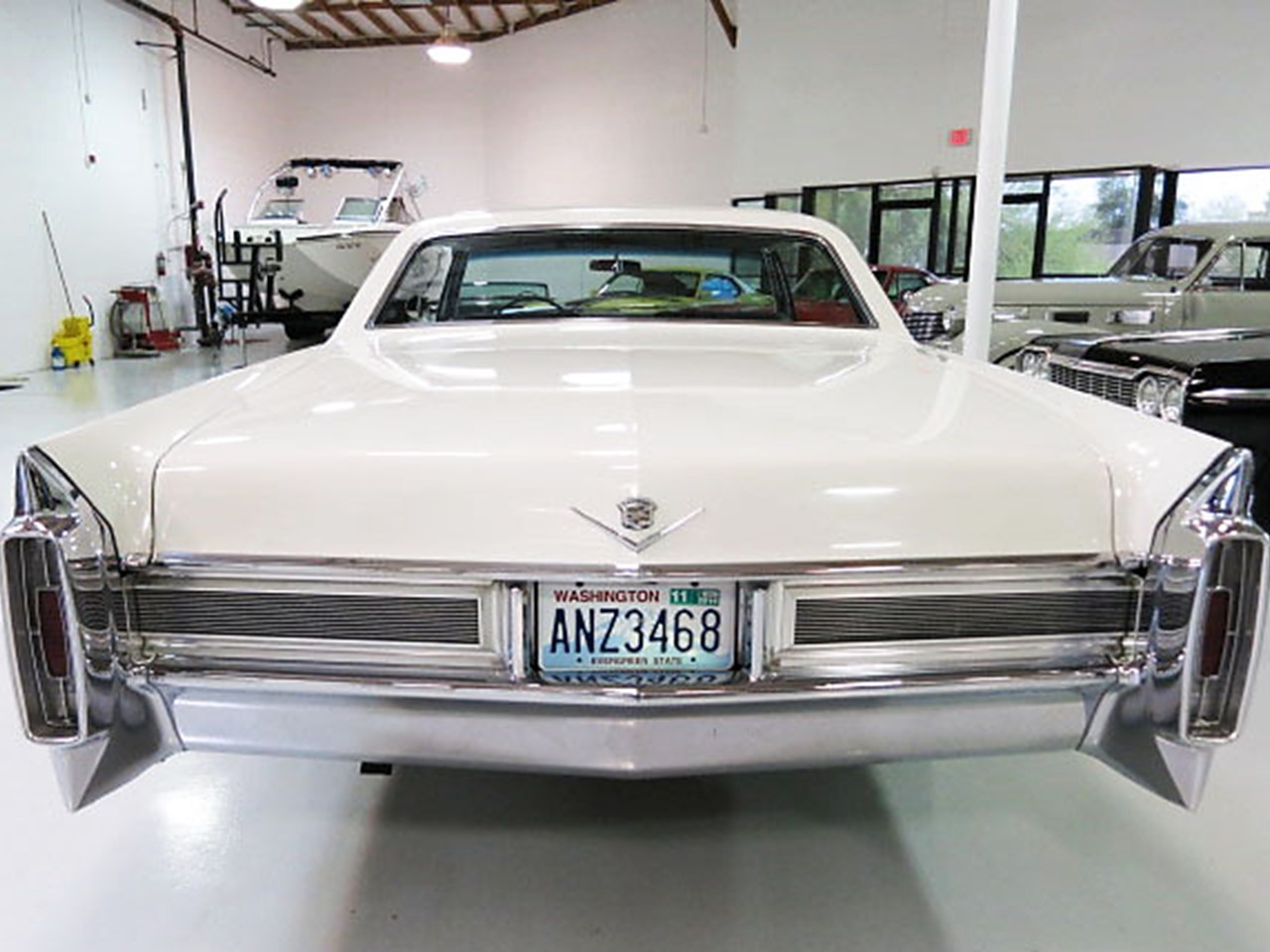

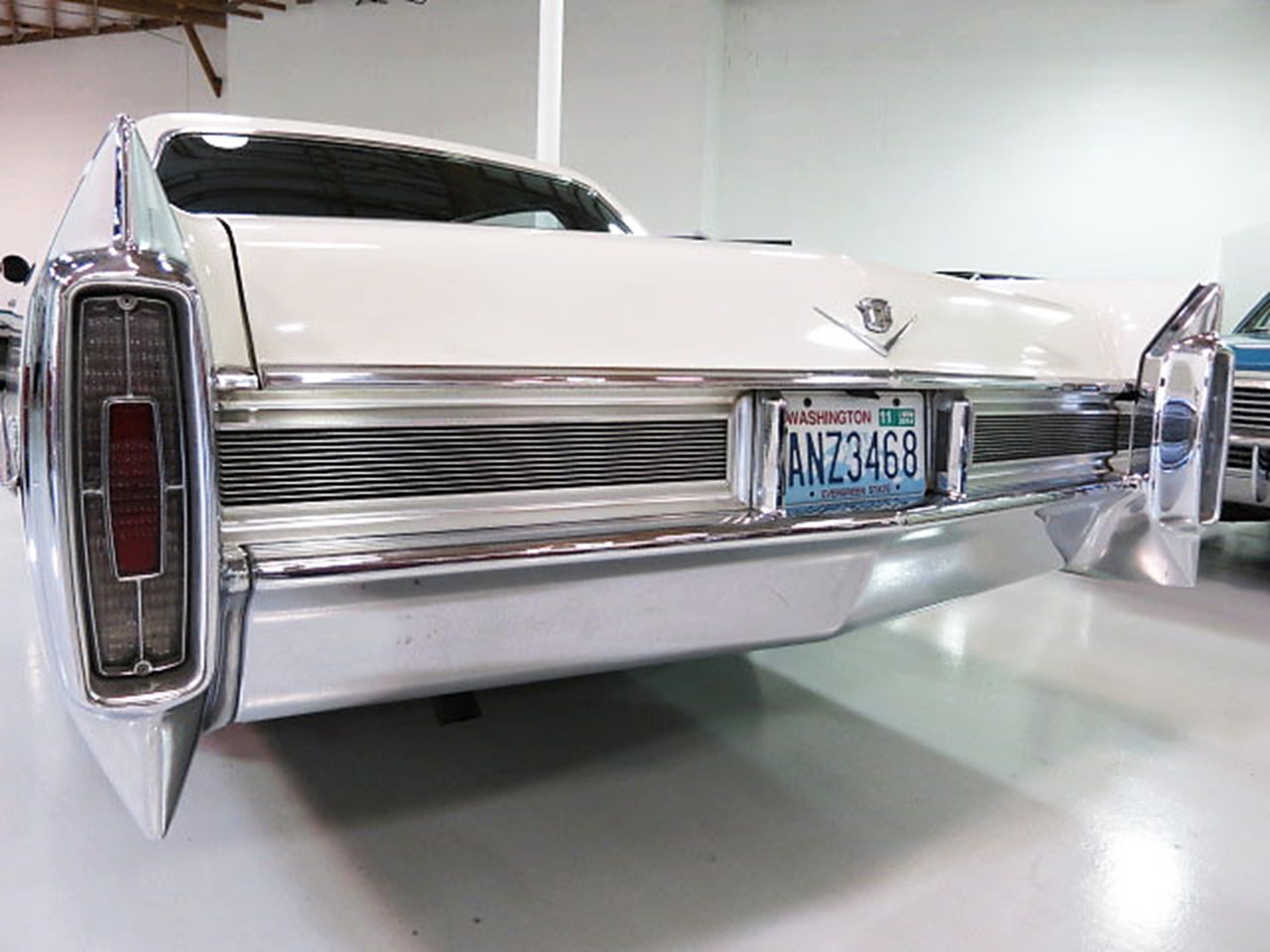

New rear styling included a beautifully beveled deck lid with deck sill grille work. The tail lamps and back-up lamps were located in the chrome bumper end caps resembling classic Cadillac DNA, aka tail fins. The overall re-styling made the 1965 Coupe deVille distinctively contemporary.

12D

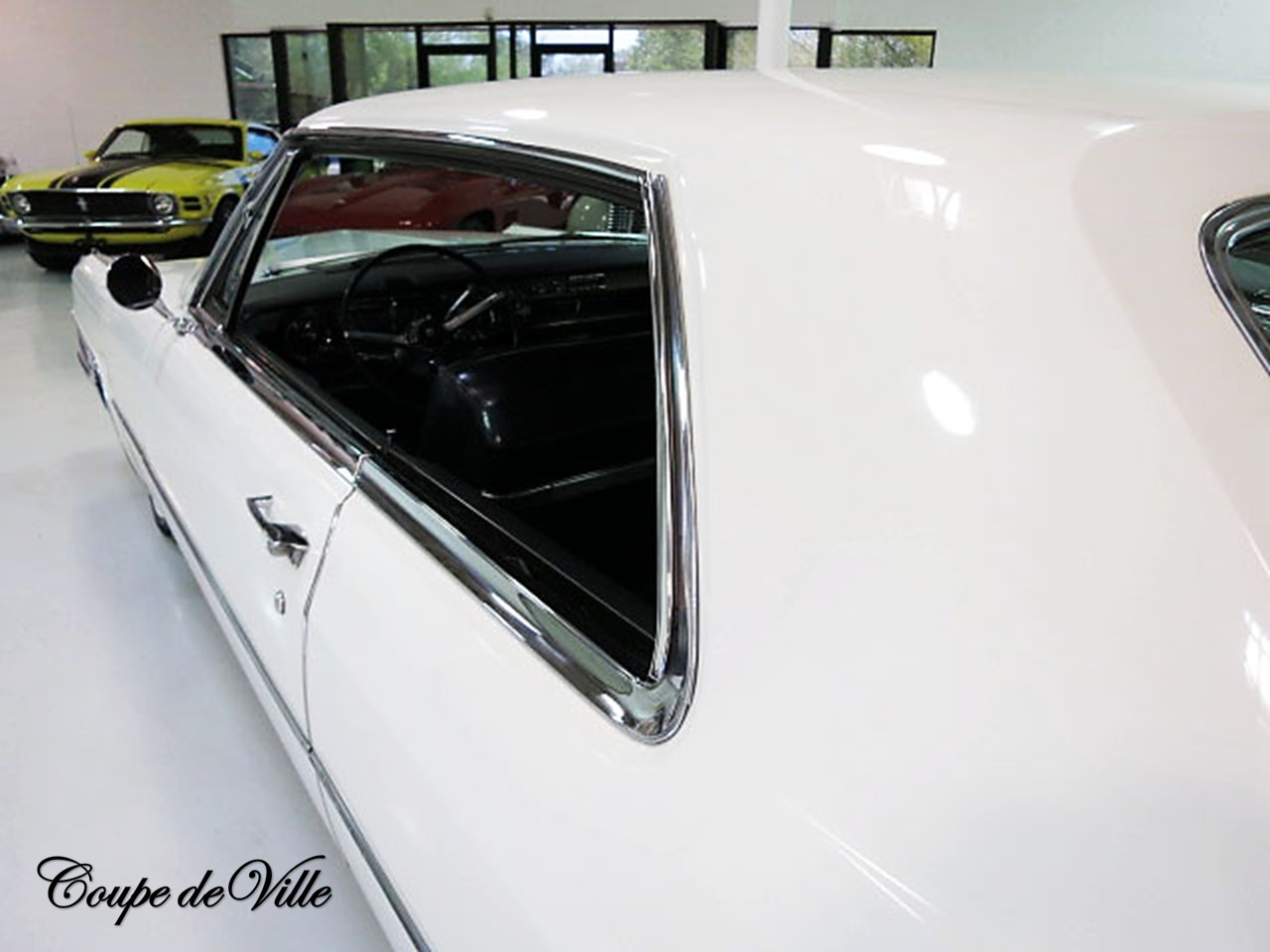

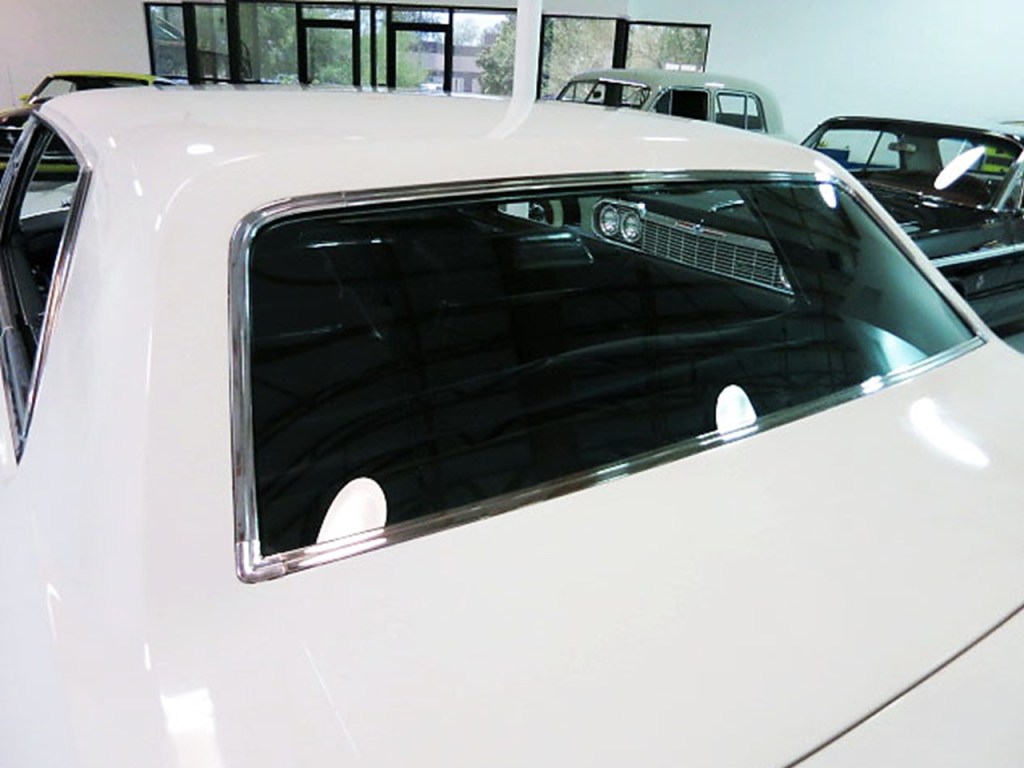

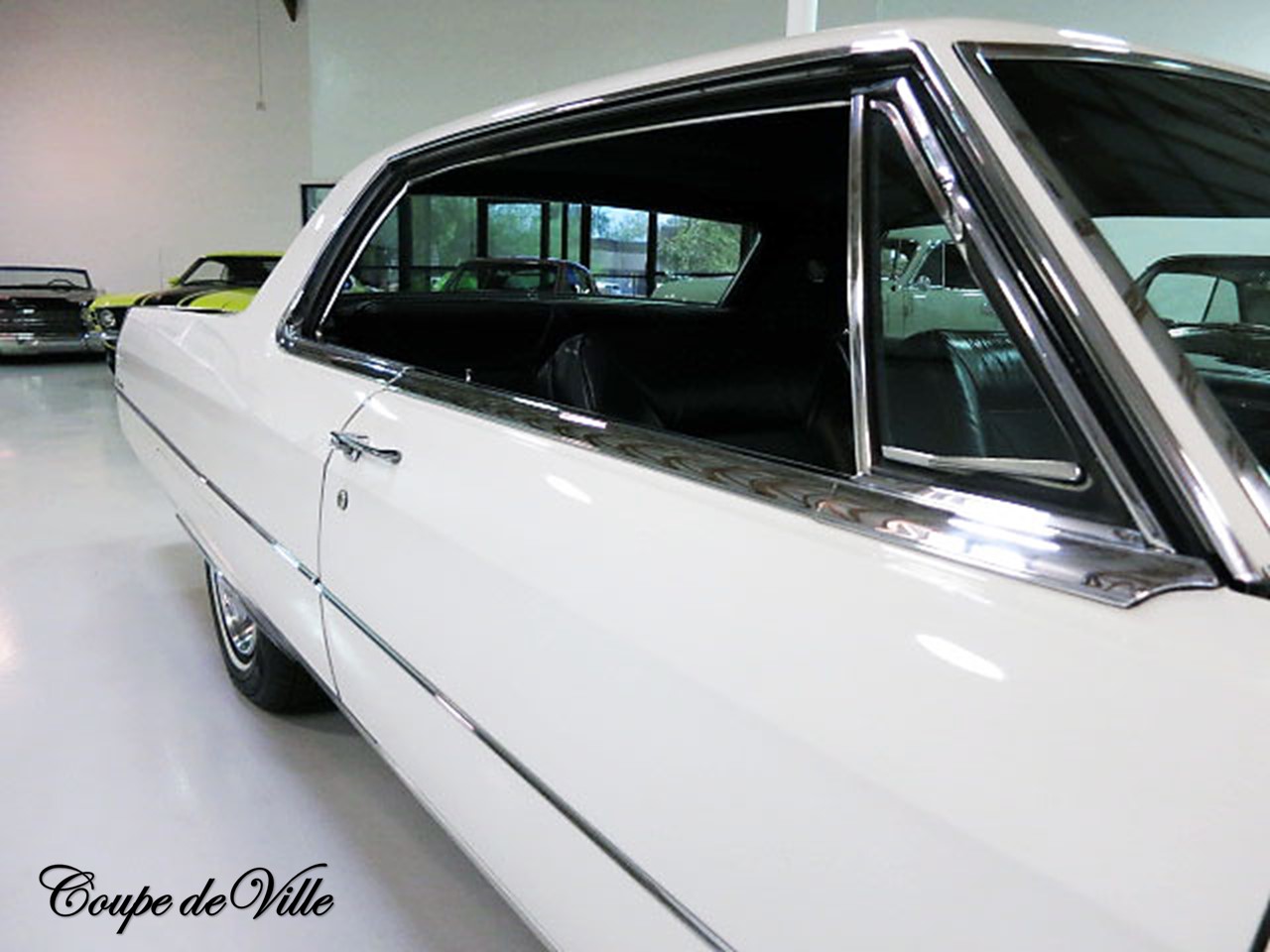

The 1965 Coupe deVille received a brand new roof design with wide “C-pillars” for rear seat privacy. The long hood and short rear deck was so typically Cadillac. The Coupe deVille maintained a poised dignity that was a true hallmark of every Cadillac.

The balanced proportions and sleek symmetry impressed even the most discerning fine car connoisseur. The elegance and distinction that have made the Coupe deVille the world’s most desirable luxury coupe were never more apparent than in the 1965 edition.

7A

12

6

39

42

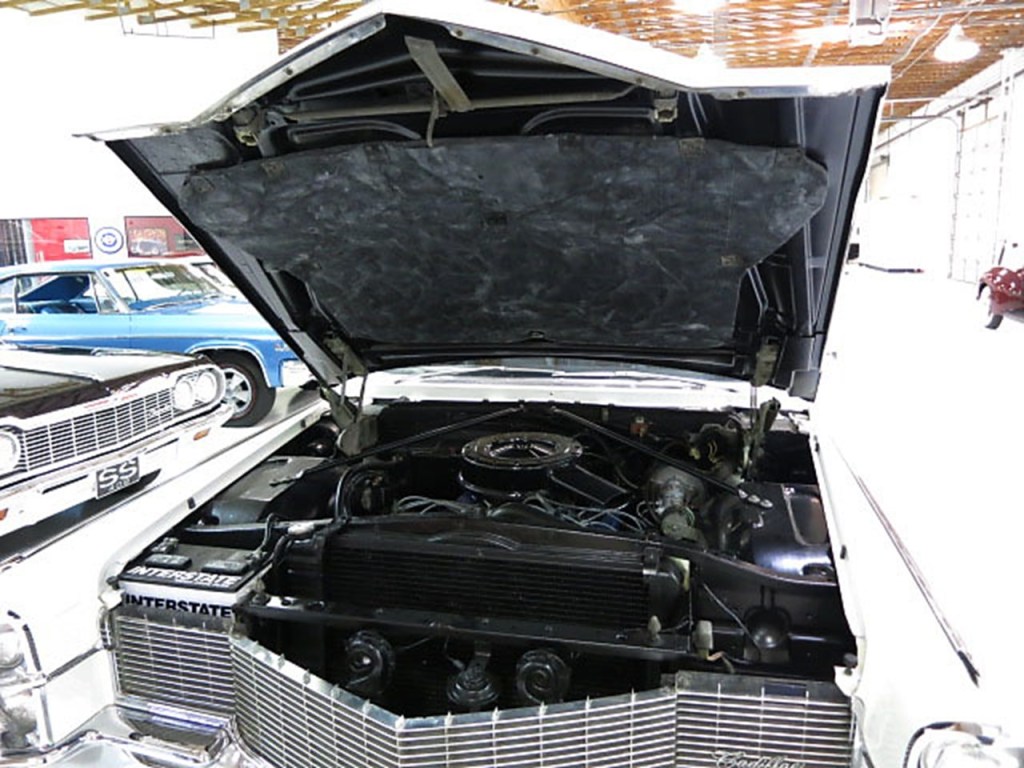

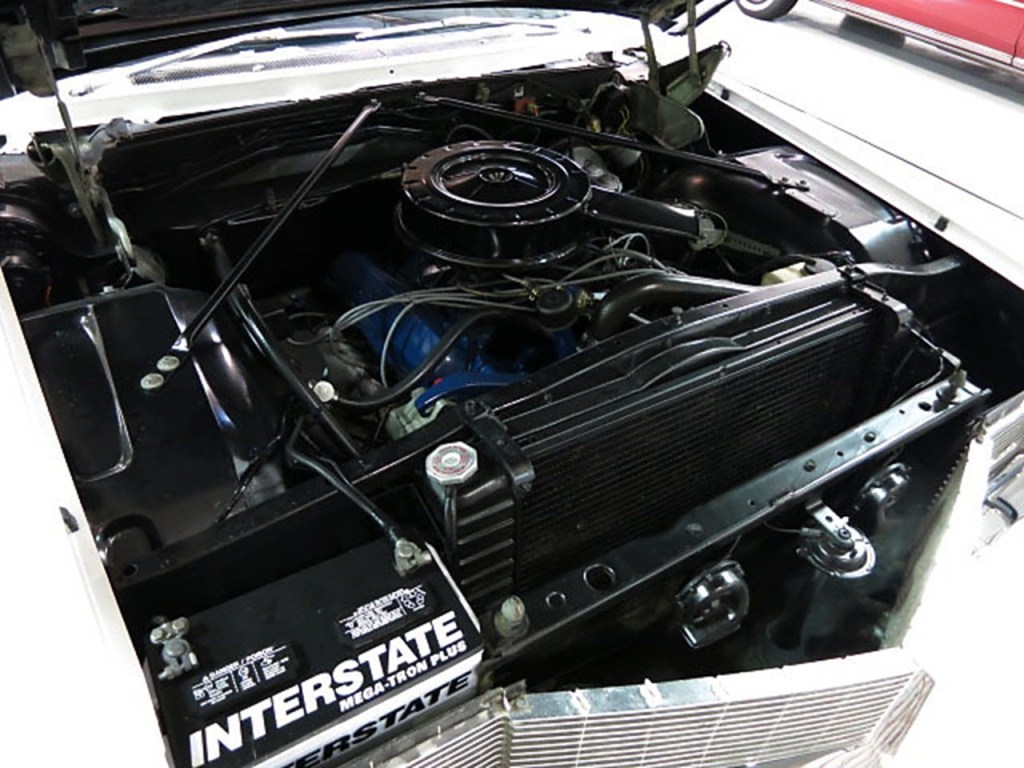

The 7.0 litre 429 CID 16-valve OHV V8 engine was designed for maximum efficiency and performance. It had a higher horsepower-to-weight ratio than any of its competitors. Refinement for the 1965 model year included a new piston head design, exclusive new exhaust system, and new motor mounts.

The engine mounts were rubber to isolate engine vibration from the cabin. The engine was equipped with a Carter AFB 3903S 4-bbl downdraft with equalized manifold, mechanical fuel pump, dry-type air filter, and automatic choke.

40

The 429 CID produced 340 hp @ 4,600 rpm with 651 Nm of peak torque @ 3,000 rpm. Performance was rated as 0-60 mph in 8.4 seconds, 0-100 mph in 23.7 seconds with a top speed of 127 mph. It could do the ¼ mile @ 88 mph in 16.1 seconds.

43

The engine was mated to GM’s THM-400 Turbo Hydra-Matic 3-speed transmission, which was a fully automatic torque converter type with variable stator. The converter multiplied engine torque for increased driving thrust at rear wheels during acceleration in any gear. It was refined to include two drive ranges, wider selectivity in acceleration, and the engine’s natural braking power.

The left “DR” assured maximum cruising economy and quietness, and slower engine speeds. The right “DR” position locked out high gear and used the intermediate gear for maximum responsiveness and increased engine braking. This position was for hilly terrain and when instant maneuverability without repeated brake application was required. It was also specially designed to hold the car on steep down grades and to provide power and agility to climb the steepest hills.

44

For 1965, Cadillac’s exclusive True Center Drive Line, was a new one-piece propeller shaft that transmitted power quietly and resisted vibration. Constant velocity joints at each end of the prop shaft cancelled out forces that generate noise and vibration.

The precise alignment of the propeller shaft and rear axle pinion through machine mounting attachments contributed to smoother, quieter performance with minimal vibration. The rear axle bearing was pre-stressed for lasting quality and dependability.

10

11

13

Cadillac was the only automobile manufacturer to offer exclusive triple braking. A dual chamber power hydraulic master cylinder facilitated independent front and rear brake operation.

A foot operated parking brake was a true auxiliary brake. It was vacuum released, therefore, it would not lock with the engine running and car in gear. The brake system was fitted with finned servo-assisted drums front and rear with self-adjusting feature.

12A

15

12C

The 1965 Coupe deVille was built as body on frame construction using Cadillac’s rugged perimeter frame that was fully boxed throughout its length for torsional rigidity and resistance to impact. This construction included hidden bulkheads for additional resistance to torsional stress and also added to the strength and rigidity of the entire car.

The design of the frame with boxed side rails instead of central structure permitted lower transmission tunnel height increasing interior room. This new frame to body structure allowed lowering step-in height by 1”. New larger suspension bushings further isolated road noise and absorbed road impact.

32

The front frame was redesigned with increased width which permitted the front strut rods to be moved further outboard for optimum control of fore and aft movement of front wheels. The front suspension used spherical joints with independent helical coil springs. The 1965 Coupe deVille rode upon a long 129.5” wheelbase, had the luxury length of 224” and a wide 79.9” stance.

A unique new pheasant tail design of the rear engine support crossmember allowed engine support without infringing upon front passenger floor space. New location of coil springs on the rear axle housing instead of lower control arms allowed control arm bushings to better isolate road noise and cushion wheel impacts.

The rear suspension used Cadillac’s four-link drive, helical coil springs, and rubber bushings to improve ride quality. The rear axle was the hypoid type with offset differential housing to facilitate straight line drive.

33

Significant improvements in engine components, body mounts, and acoustical design enhanced Cadillac’s legendary silence of operation. There never had been a Cadillac so impressively new, so unmistakably Cadillac…All the 1965 Coupe deVille needed was you behind the wheel.

The dramatic styling of the 1965 Coupe deVille was highlighted by the classic Coupe deVille. All DeVille models offered a rare combination of fine car luxury and elegance with astounding performance. The DeVille was one of America’s most prestigious models.

16

17

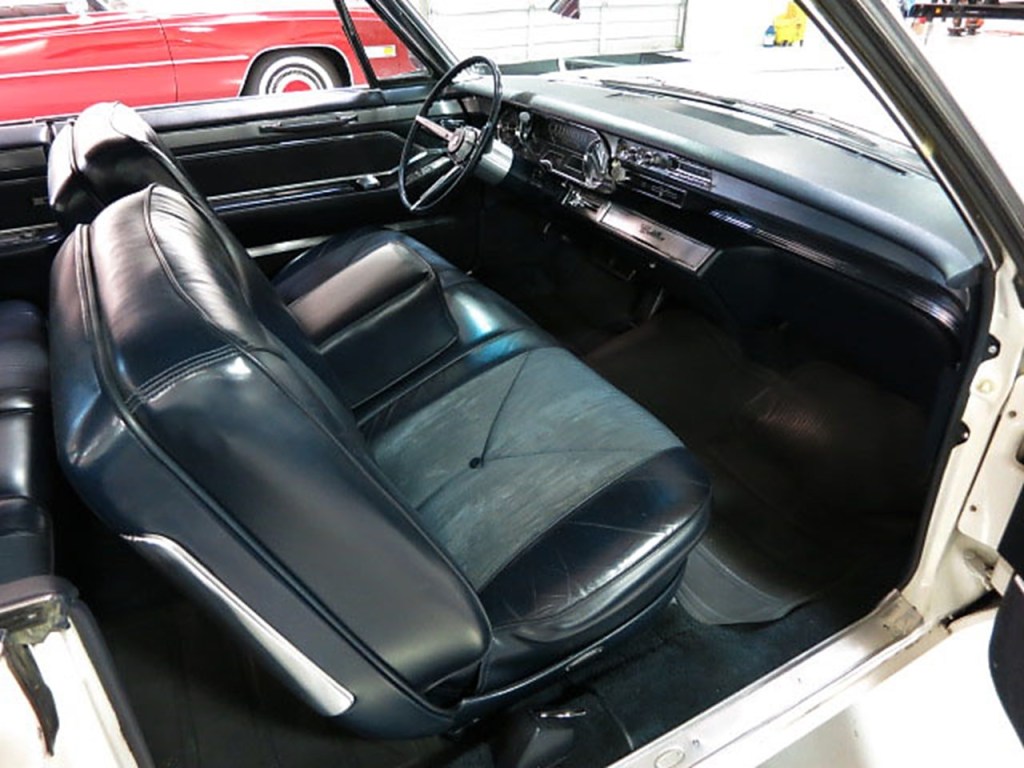

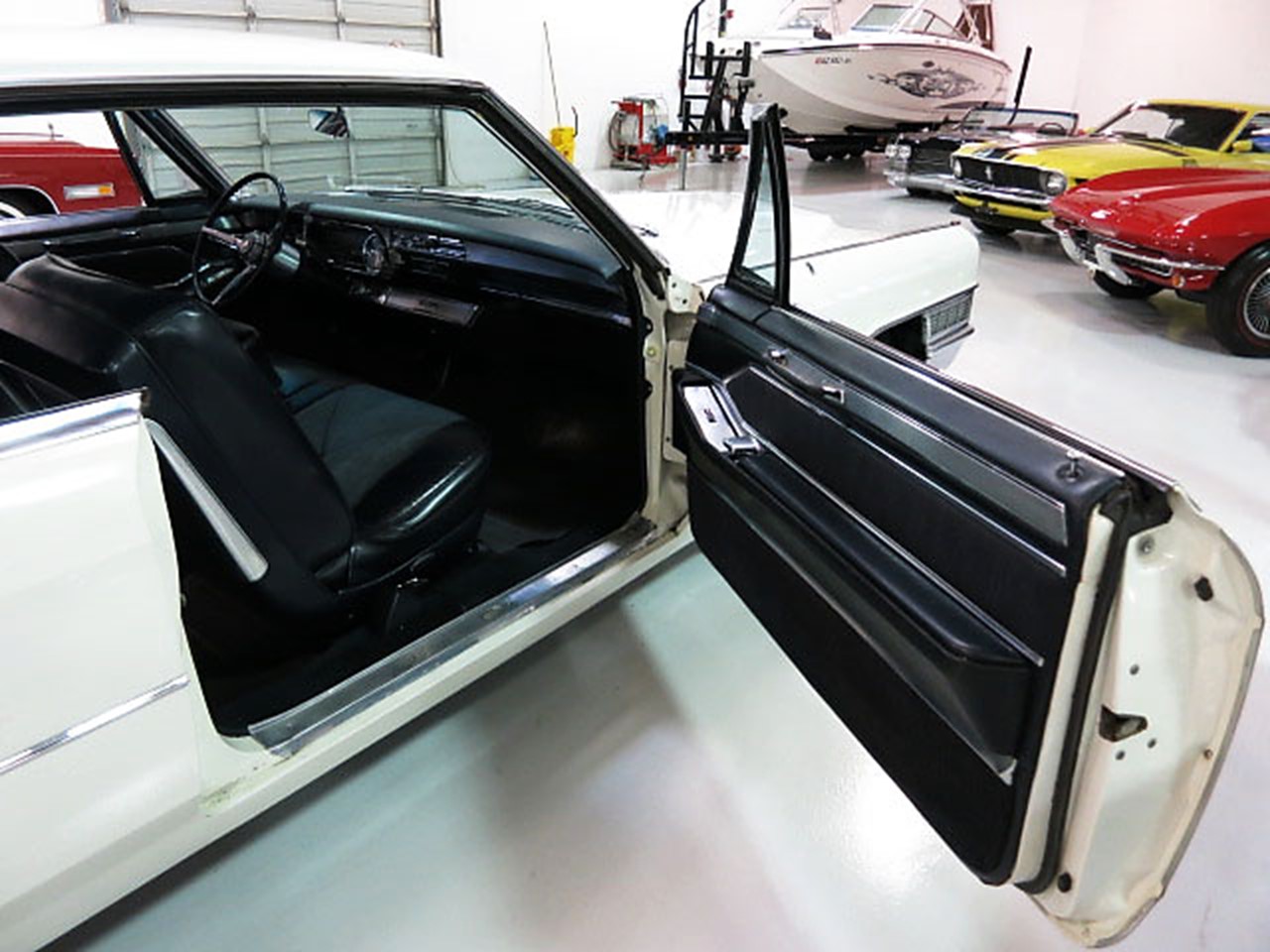

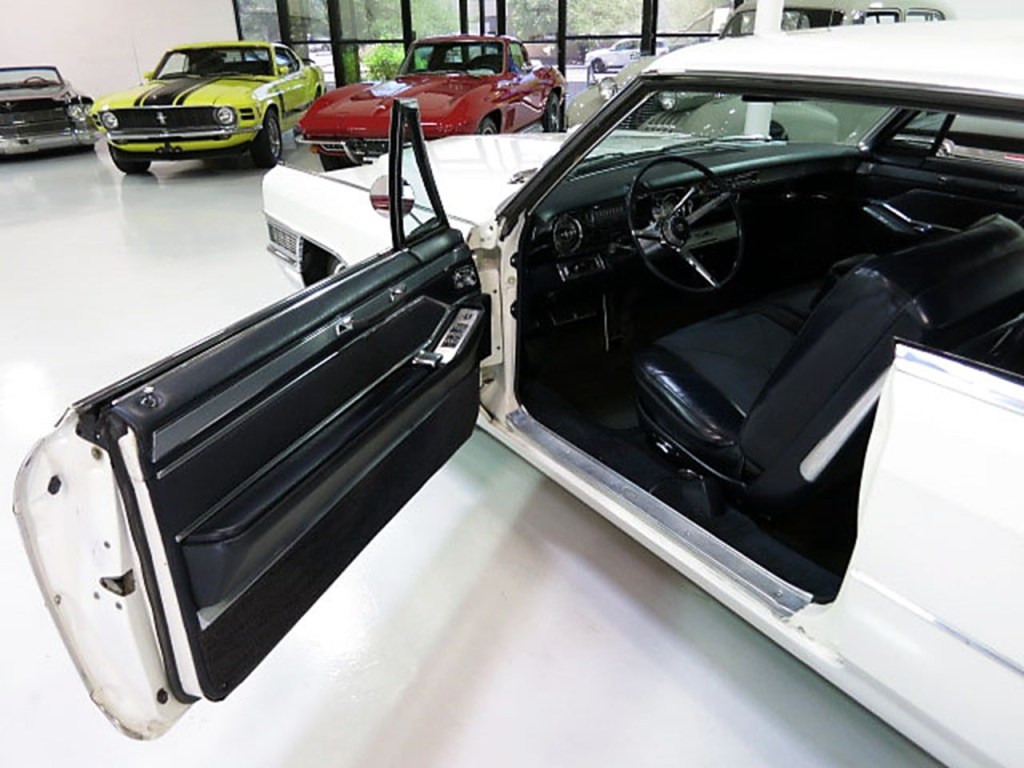

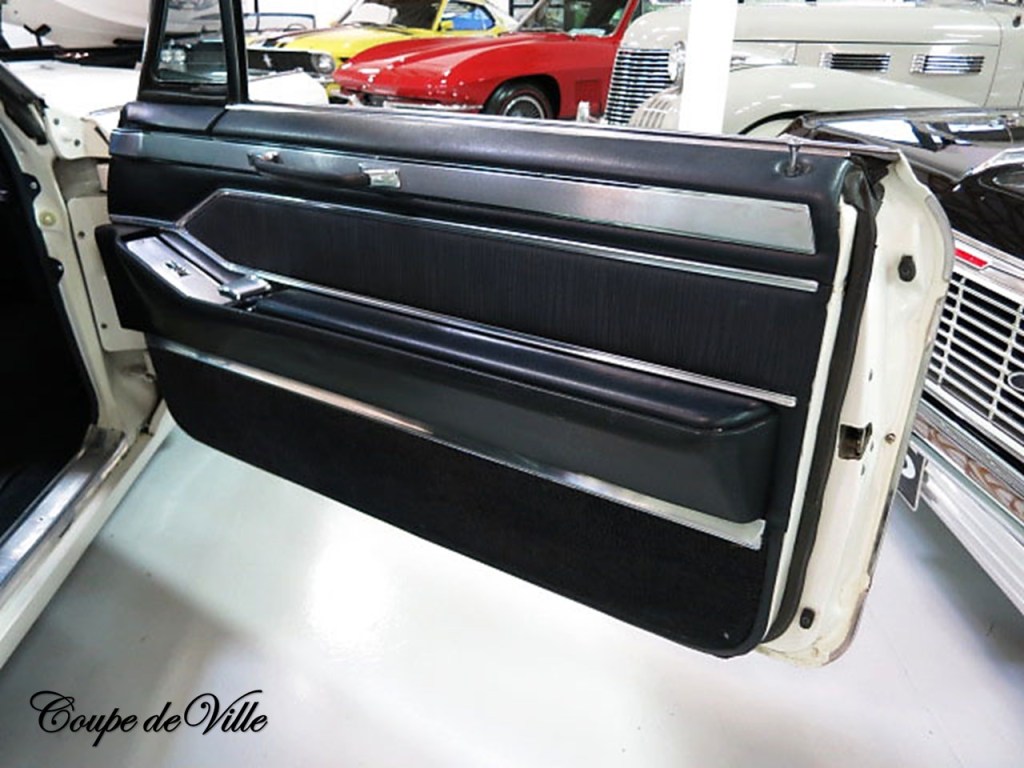

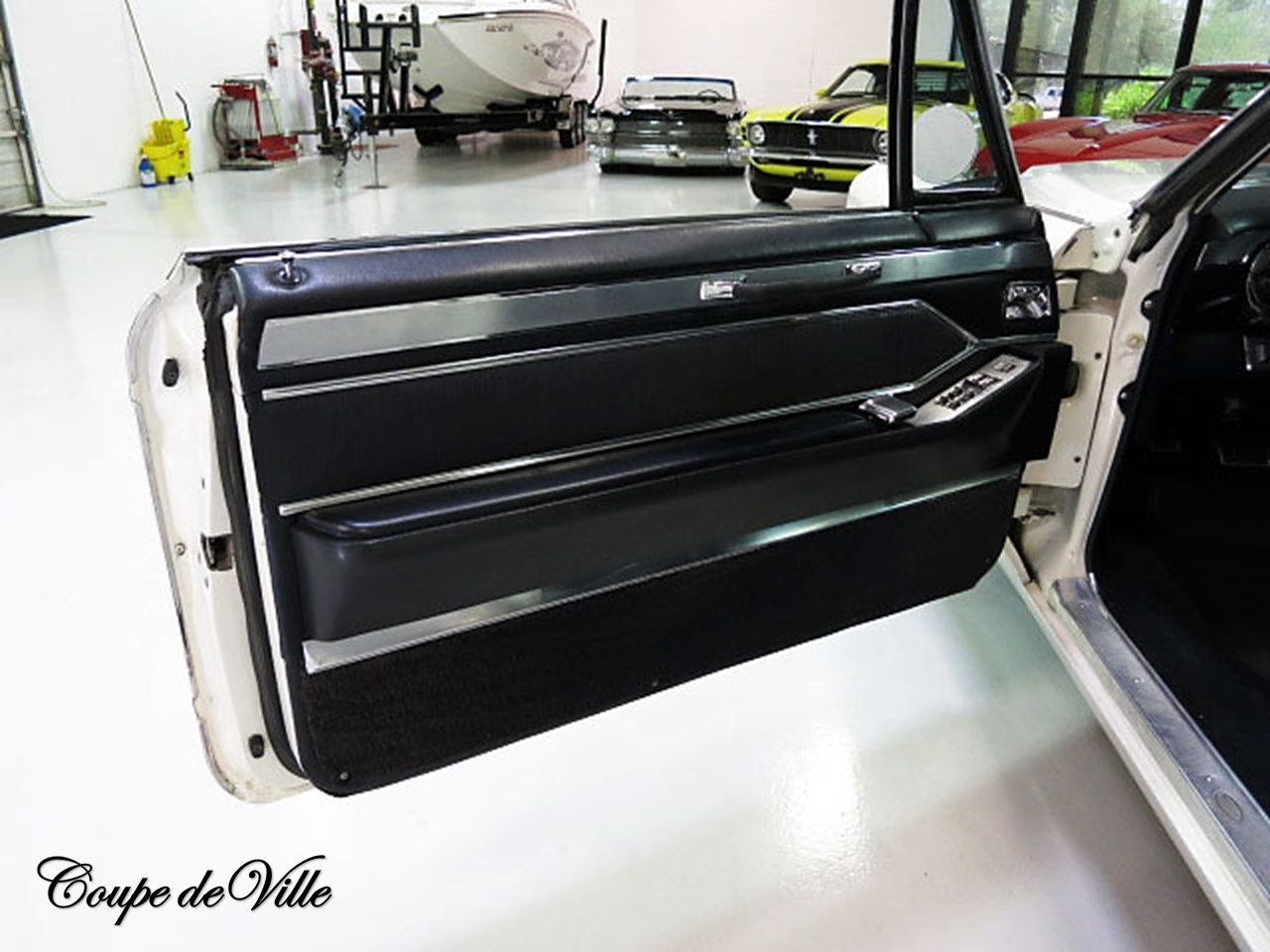

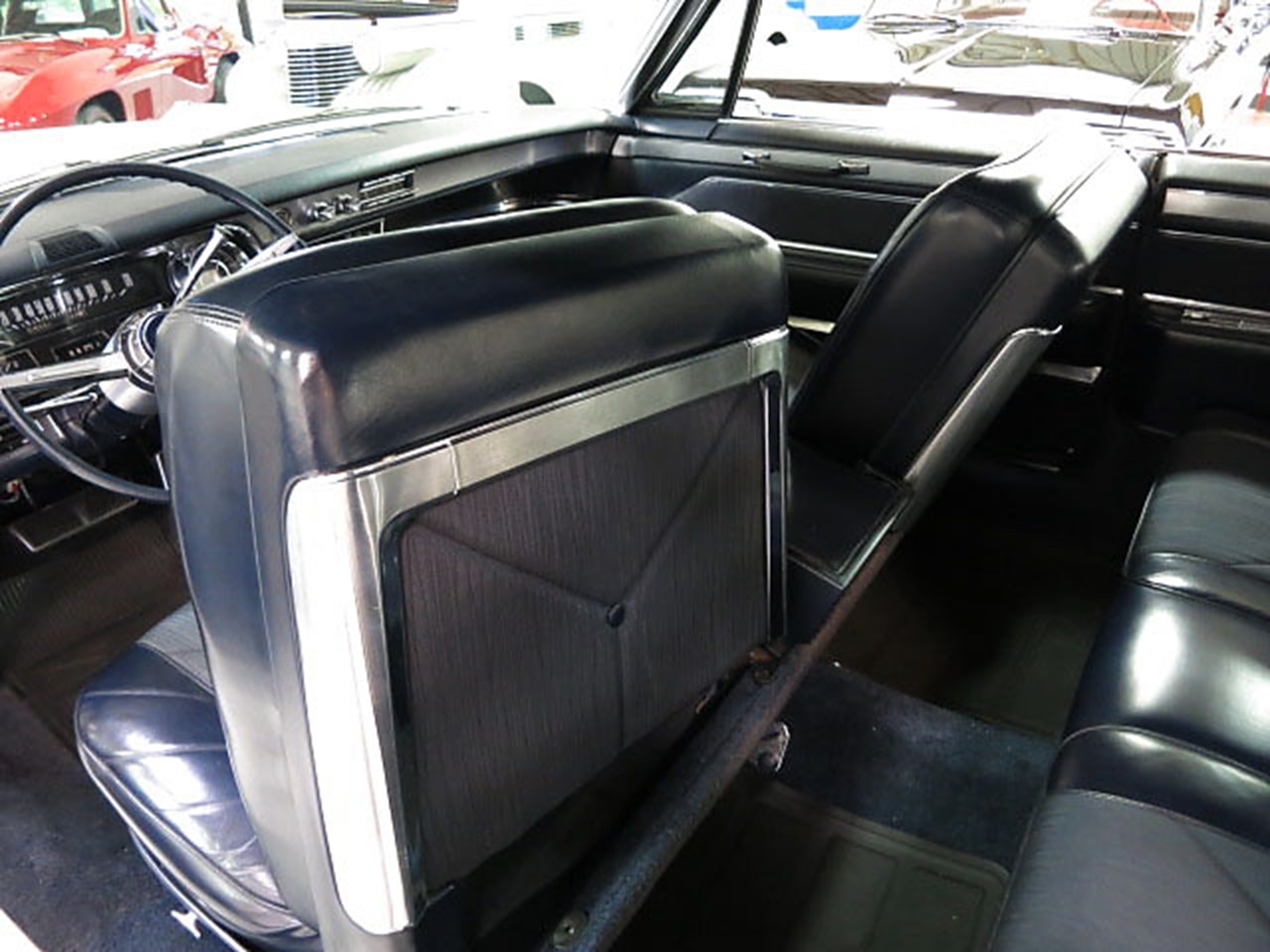

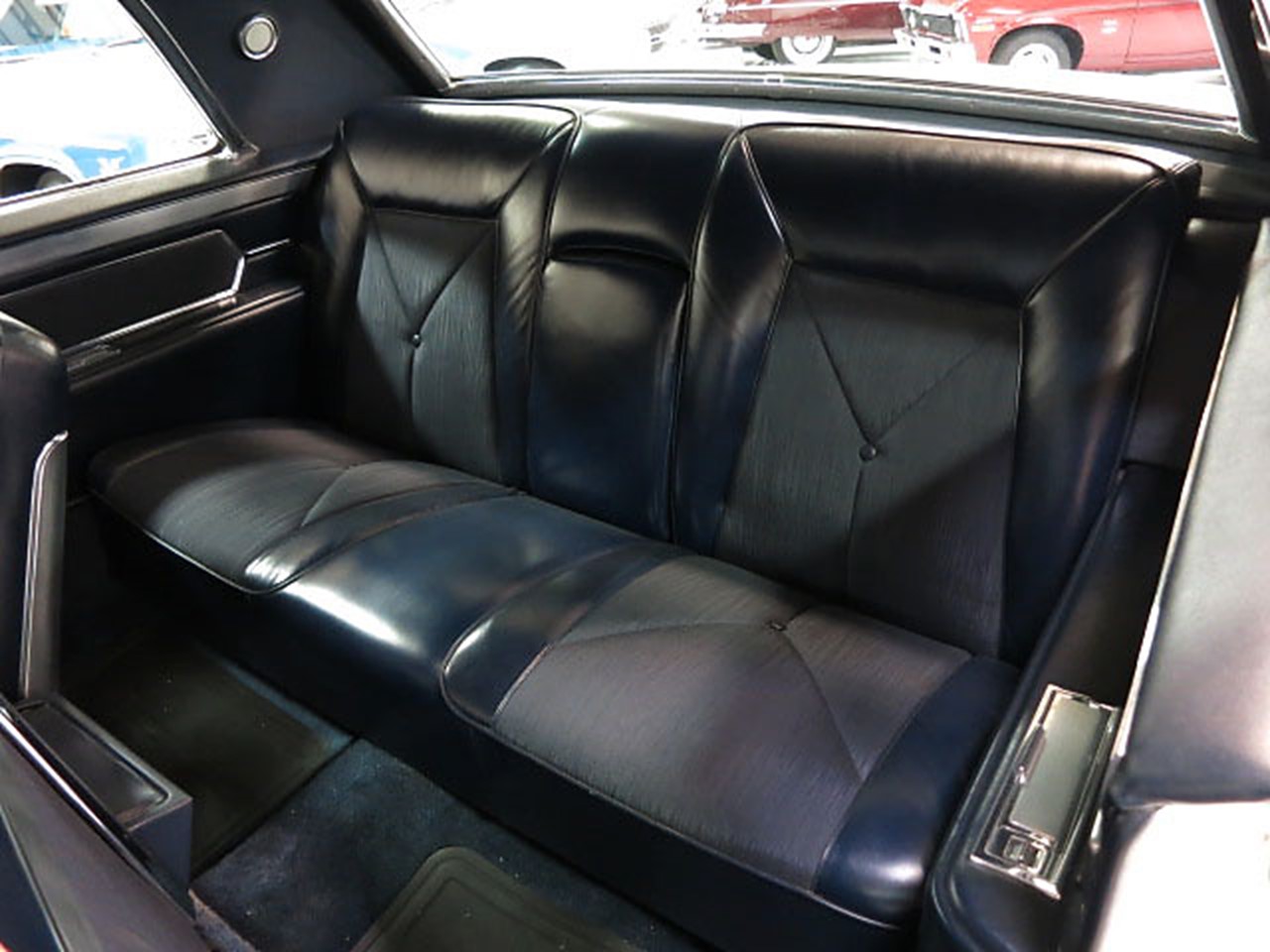

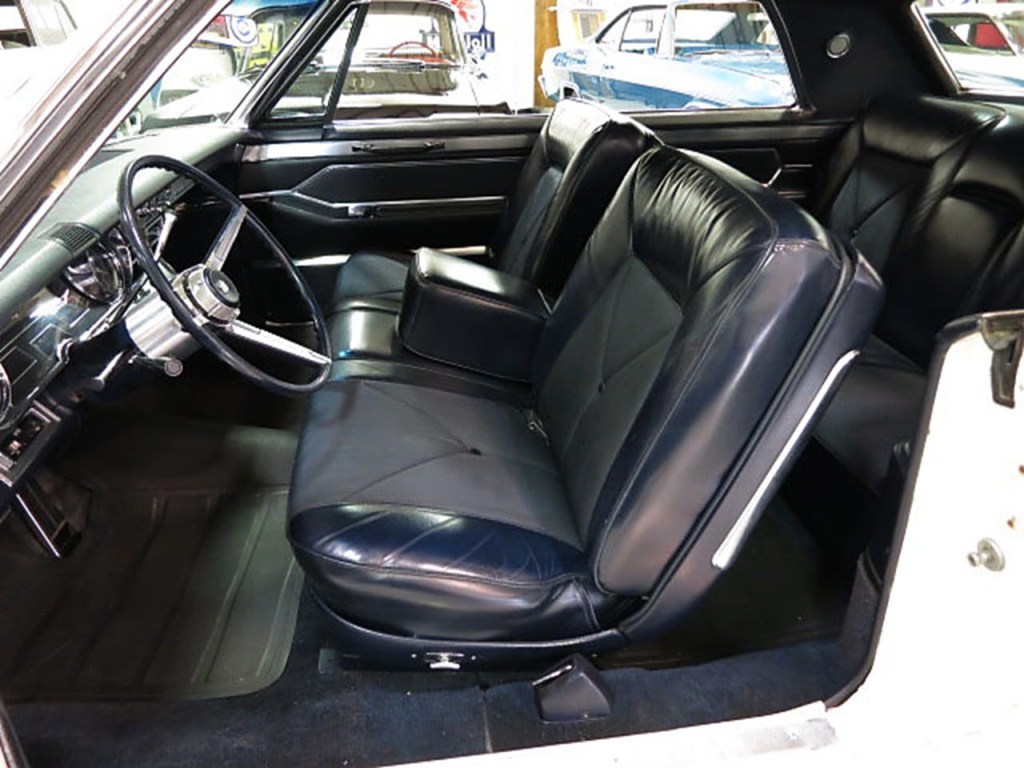

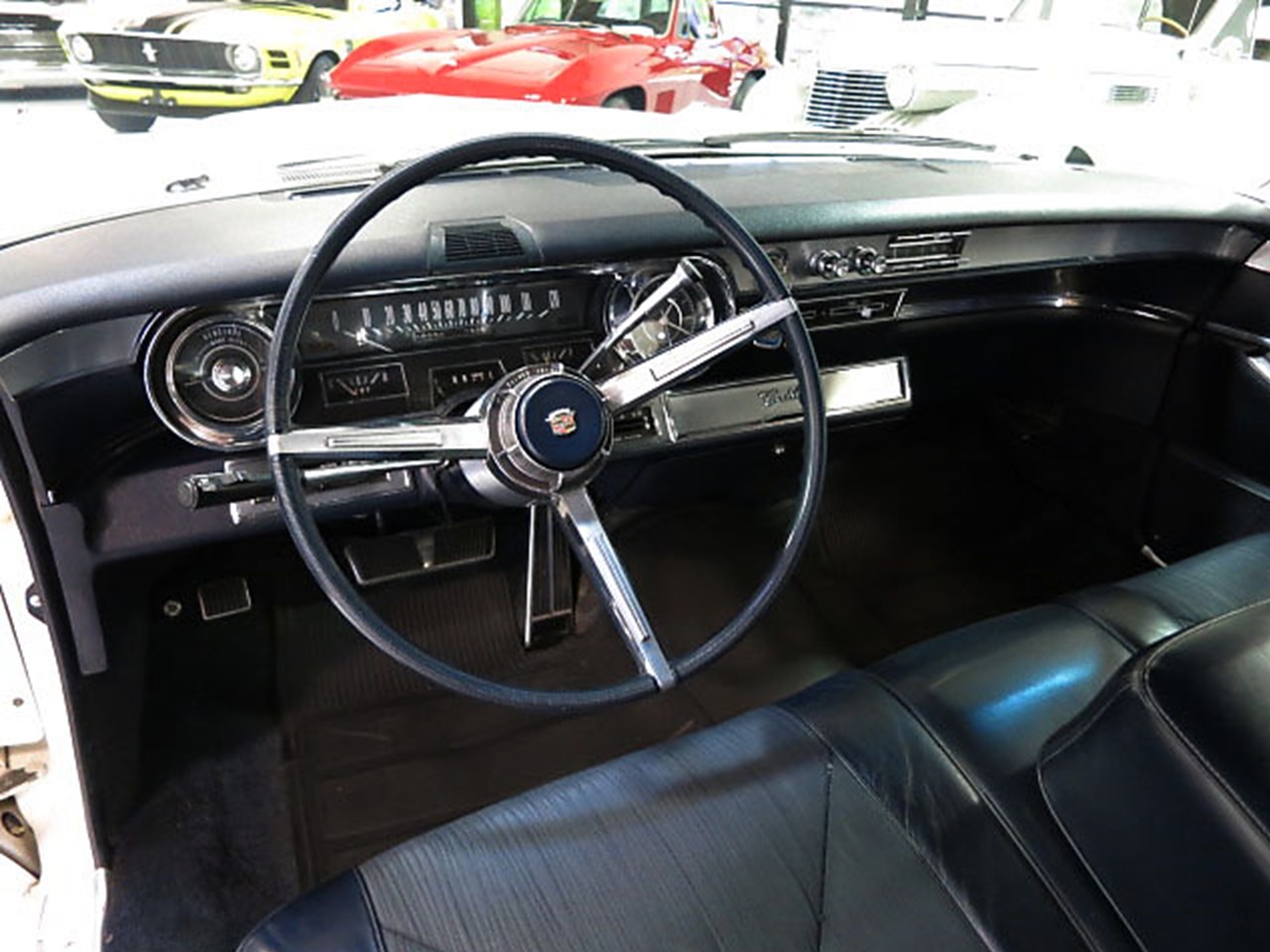

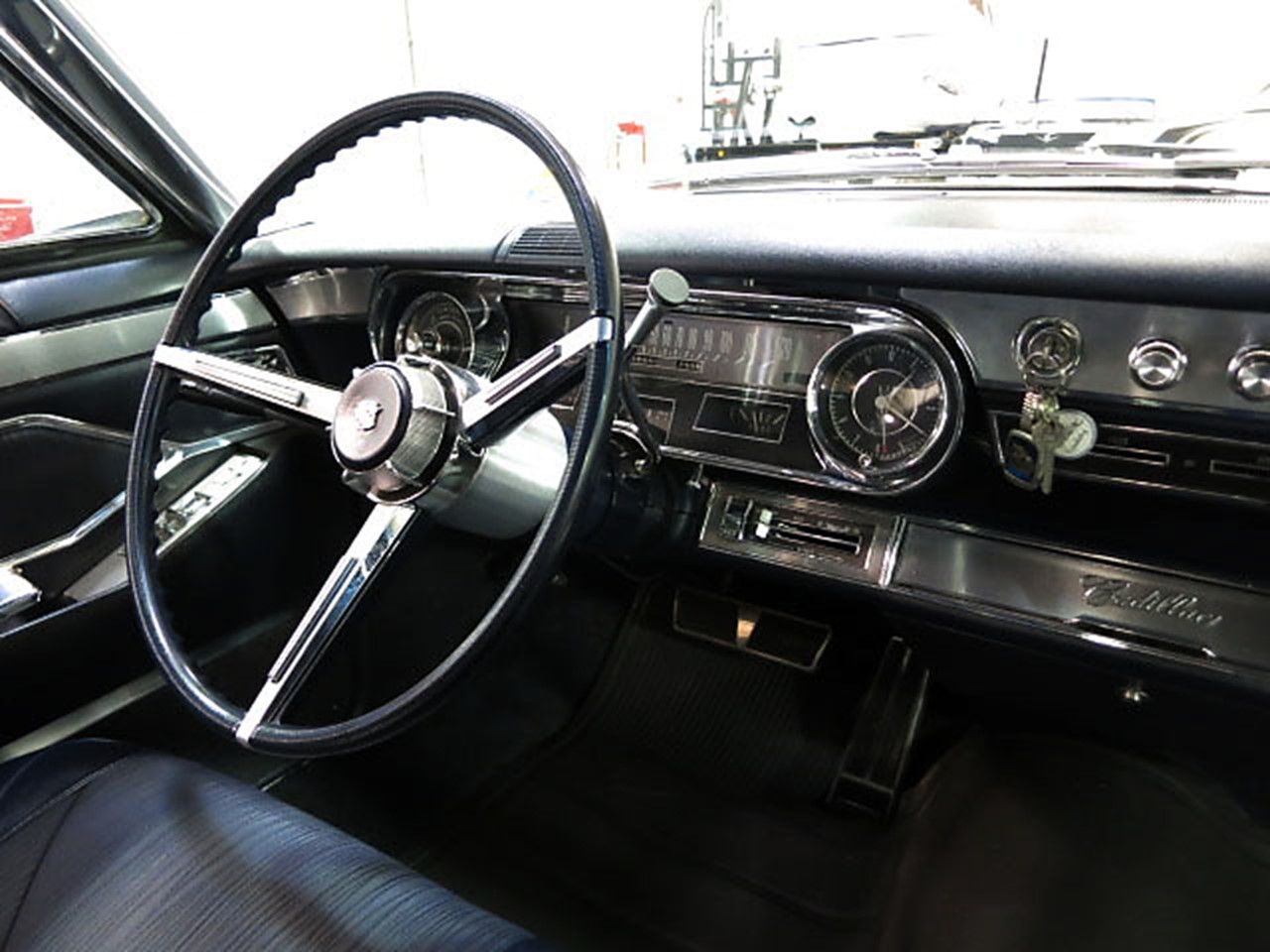

The Coupe deVille was first class in glamour and excitement. Standard equipment for the 1965 Cadillac Coupe deVille included: power windows and seat, Variable Ratio Power Steering, power brakes, folding center front and rear seat arm rests, and a host of comfort and convenience features too numerous to mention. Your choice of cloth with leather or all-leather upholstery was available to make the Coupe deVille as individual as its owner.

18

19

20

21

22

23

24

25

26

27

28

29

30

31

The Cadillac Coupe deVille for 1965 was a new dimension in motoring excellence. The DeVille Series offered an extraordinary selection of body colors, interiors, and optional equipment. The Coupe deVille had an intimacy no other coupe could replicate. The 1965 Coupe deVille was powered by a 340 hp V8 engine refined to near perfection.

A host of other engineering advancements gave the Coupe deVille extraordinary road stability and ease of handling. It was the “Standard of the World” in engineering craftsmanship. The Cadillac was always a car with such dignity and majesty. Luxury and elegance were the everyday pleasures of the Coupe deVille.

From its inception in 1949 when the first Coupe deVille was spawn from the Series Sixty-two, it has been one of the most successful production runs in the history of the brand. The Coupe deVille was one of America’s favorite luxury cars…the other was the Sedan deVille. Here ends another brilliant DeVille success story…in the continuing saga of “As the Standard of the World Turns.”

37

38

45

45B

46

48

47

1965 Cadillac Coupe deVille
